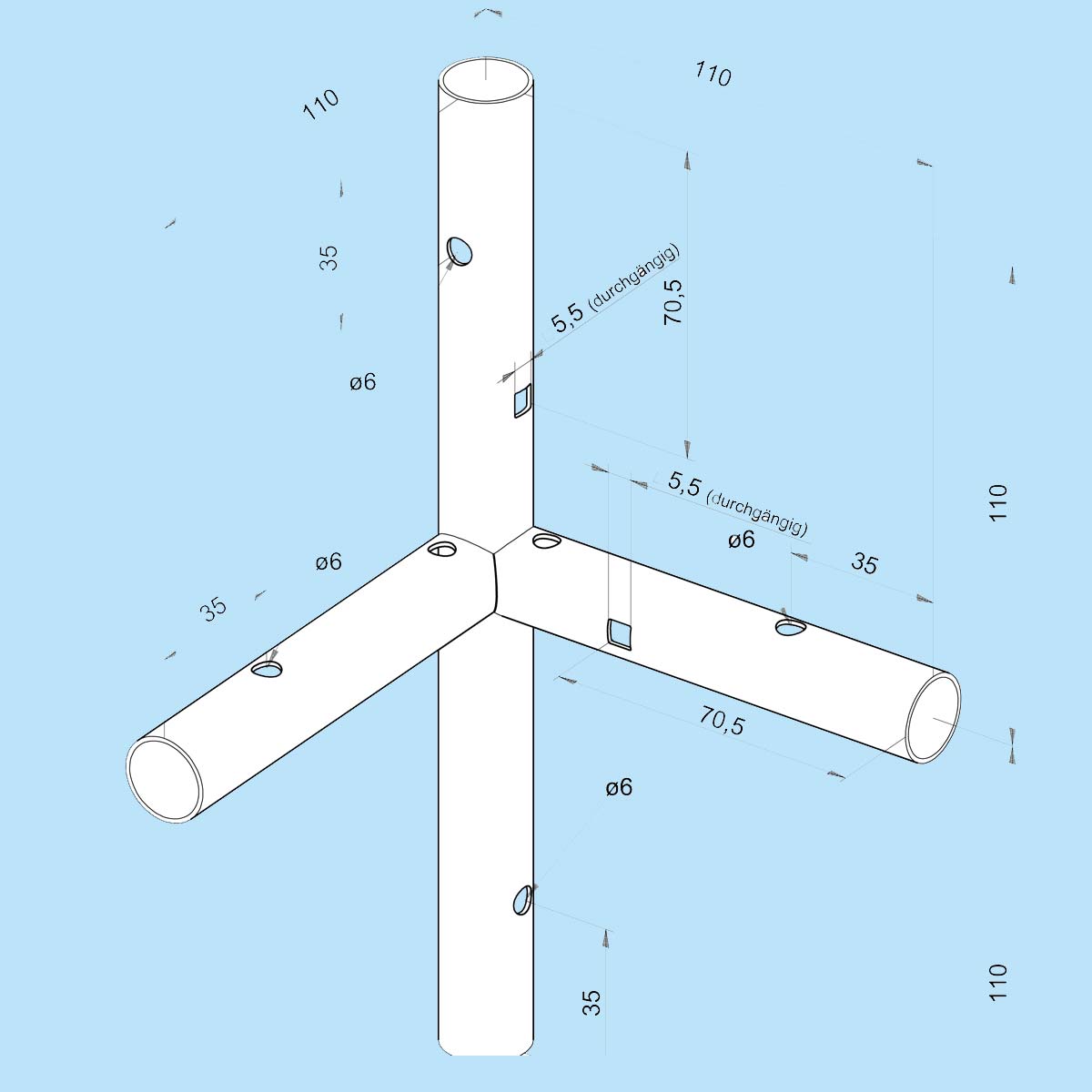

Side-angle connection for our telescopic pull-out rods and connecting rods

Depending on the size of the frame area, cross connections should be used to ensure stability. This side angle connector can be used both horizontally and vertically (see diagram). It fits our extendable telescopic poles as well as the connecting rods.

If this side angle connector is attached to our telescopic pole, you will additionally need a fixing screw. If the side angle connector is attached to the connecting rods, no extra screw is required. The connecting rods have a tripod spring that snaps into the connecting element.

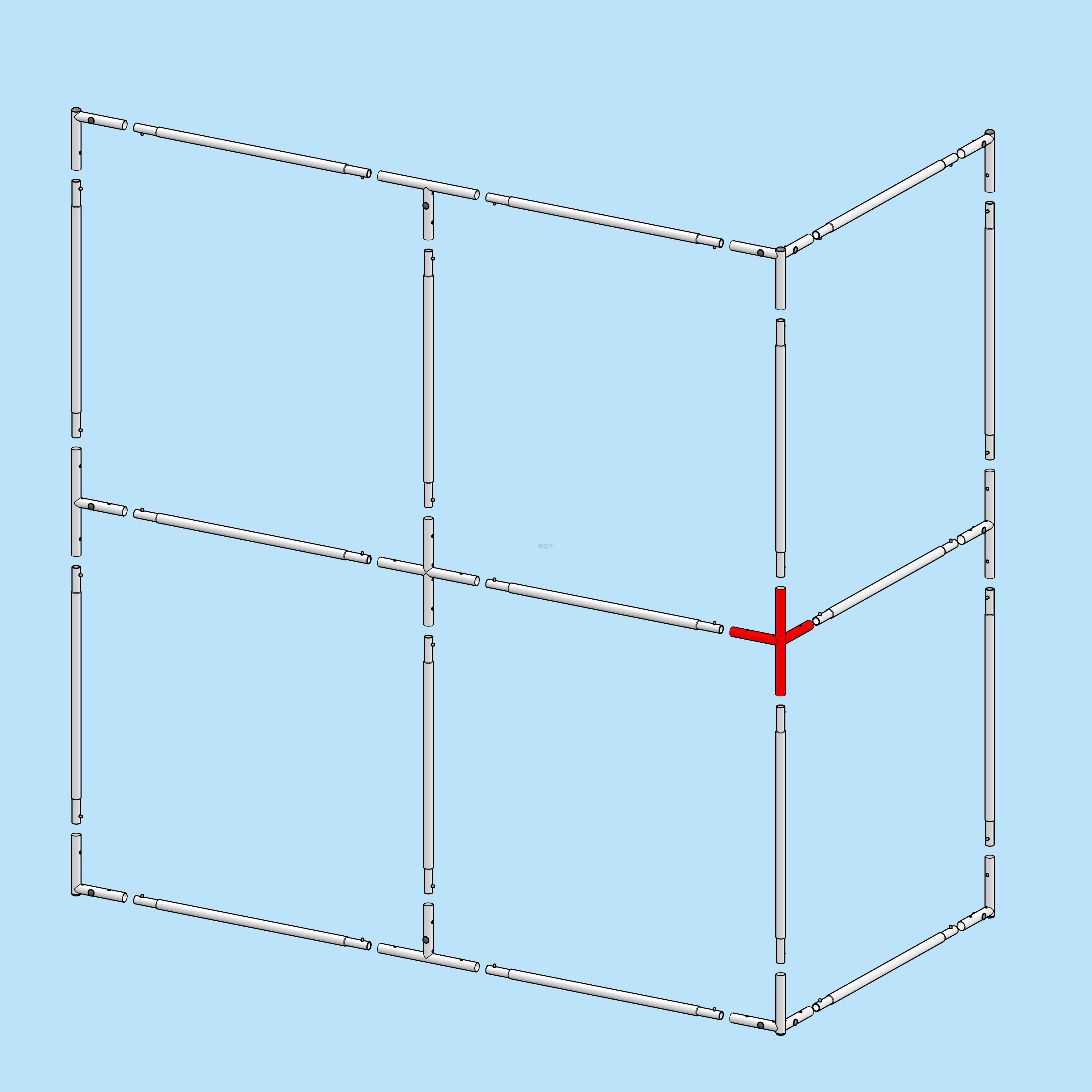

Frame System with Extendable Telescopic Poles for a 3.5 m Long Balcony with Corner

• 1) End connector
• 2) T-connector
• 3) Corner angle connector
• 4) Connecting rod 200 cm
• 5) Connecting rod 100 cm
• 6) Connecting rod 120–190 cm
• 7) Extendable telescopic pole
