2-pieces connecting rod with a total length of 200cm. This connecting rod is required to build a net frame together with our connecting pieces (T-connection, corner connection and end connection) e.g. on the balcony. The rods have a diameter of 19mm and are tapered to 16mm at the ends. All tapered ends are equipped with a tripod spring that snaps into the hole provided in the connector.Available lengths: 200cm, 100cm, 10 to 50cm, 65 to 100cm and 120 to 190cm

This extension rod can only be used in conjunction with the 2m long connecting rod. It extends the 2m pole continuously from 200cm to 250cm.

This connection rod with a total length of 100cm and a diameter of 19mm (tapered at the ends to 16mm) fits all our connection pieces. In combination with the other connection rods, almost any desired length can be put achieved. The distance between the telescopic poles should not exceed 200cm. . Available in lengths: 200cm, 100cm, 10 to 50cm and 100 to 150cm Colour:  silver-colored galvanized

Adjustable connection rod from 120 to 200cm. This connecting rod is required to adjust the frame length to match the length of the balcony. In combination with our other connecting rods, the required frame size can be precisely adapted. Colour: Electroplated. Silver-coloured galvanised.

Steplessly adjustable connecting rod from 80 to 115 cm. This connecting rod is needed to adjust the frame length according to the length of the balcony. In combination with the other connecting rods, almost any desired length can be assembled. Colour: electro-galvanised silver finish Frame system with extendable telescopic poles for a 3.5 m balcony with corner 1) End connection 2) T-connection 3) Corner angle connection 4) Connecting rod 200 cm 5) Connecting rod 100 cm 6) Connecting rod 120 - 190 cm 7) Extendable telescopic pole

To achieve greater stability for your balcony net system, the telescopic rods are connected to each other using the connecting rods and connecting elements. These corner connectors are fitted on top of the telescopic rods installed in the corners (onto the inner tube with 16 mm Ø) and permanently secured with the corresponding screws. The spacing between the telescopic rods should not exceed 2 metres. Please note that all connecting elements offered cannot be attached to the lower end of the extendable telescopic pole. If you also wish to install a cross connection along the lower longitudinal side, you cannot use the extendable telescopic rods. In this case, you must use the connecting rods. You can then attach the connecting elements at both the top and bottom (in this case the connecting elements are slid onto the connecting rod and secured by the snap-in of the tripod spring). IMPORTANT: You do NOT need a screw when the corner connectors are used together with the connecting rods. Screws are only required when the corner connectors are mounted on our extendable telescopic rods. If the balcony is also to be netted on the sides, these corner connectors are required. They are slid onto the already installed telescopic pole in the corner. Frame System with Extendable Telescopic rods for a 3.5 m Long Balcony with Corner 1) End connector 2) T-connector 3) Corner angle connector 4) Connecting rod 200 cm 5) Connecting rod 100 cm 6) Connecting rod 120 - 190 cm 7) Extendable telescopic pole

If the net frame is larger than 1 m x 1 m, these cross connections are required to give the net wall greater stability. The individual sections should not be larger than 1 x 1 m, as otherwise the stability of the mesh wall will suffer. We would be happy to advise you on the selection of the required parts.

To achieve higher stability for your balcony netting, the telescopic poles are connected to each other using connecting rods and connecting elements. These end connections are placed ABOVE on the first and last telescopic pull-out pole (on the 16 mm Ø insertion tube) and permanently fixed with the appropriate screws. **Important:** All offered connecting elements CANNOT be attached to the lower end of the telescopic pull-out pole. If you also want to install a cross connection on the lower long side, you cannot use telescopic pull-out poles. In this case, you must use connecting rods. Then you can attach the connecting elements at both top and bottom (the connecting elements are placed on the connecting rod and secured by the tension spring snapping into place). CAUTION: You need NO screw when the connecting element is used together with connecting rods. Screws are only required when mounting connecting elements on the telescopic pull-out pole. If you use telescopic pull-out poles, please don't forget to order the screws as well. Frame system with telescopic pull-out poles for a 3.5 m balcony with corner 1) End connection 2) T-connection 3) Corner angle connection 4) Connecting rod 200 cm 5) Connecting rod 100 cm 6) Connecting rod 120–190 cm 7) Telescopic pull-out pole

This extension rod makes it easy to extend all our connecting rods. Simply clip it on - and you’ll gain an extra 50 cm in length. No tools required, no hassle.

In order to be able to install the over-climbing protection for telescopic pull-out poles on the frame system, this connecting tube is required together with the connecting elements. Easy assembly. This connecting tube can be seen in the image below – number 3 (marked in red):

You need this screw set if you want to attach a Connecting Part of our Net Frame to our extendable telescopic rod.

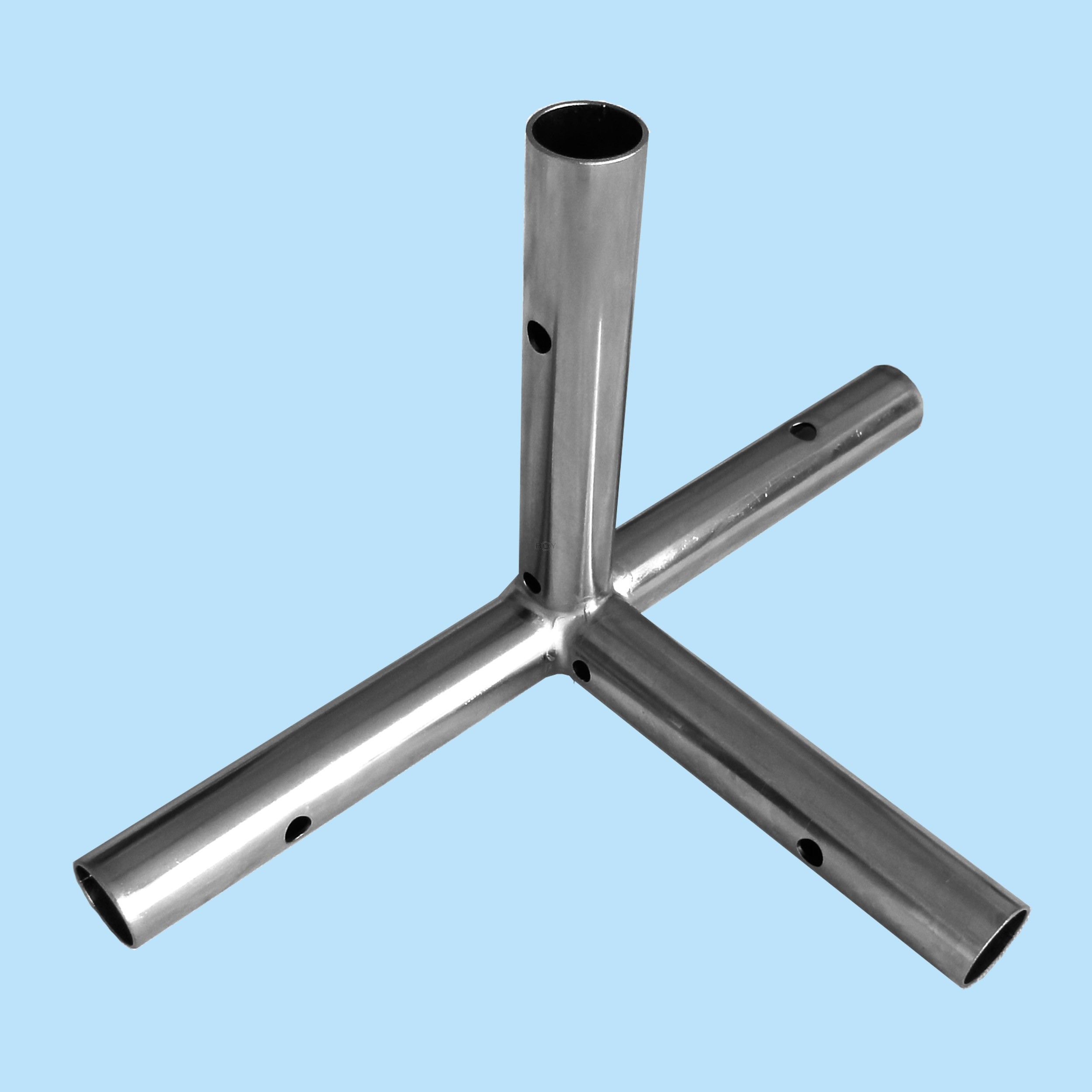

Depending on the size of the frame area, cross connections should be used to ensure stability. This side angle connector can be used both horizontally and vertically (see diagram). It fits our extendable telescopic poles as well as the connecting rods. If this side angle connector is attached to our telescopic pole, you will additionally need a fixing screw. If the side angle connector is attached to the connecting rods, no extra screw is required. The connecting rods have a tripod spring that snaps into the connecting element. Frame System with Extendable Telescopic Poles for a 3.5 m Long Balcony with Corner 1) End connector 2) T-connector 3) Corner angle connector 4) Connecting rod 200 cm 5) Connecting rod 100 cm 6) Connecting rod 120–190 cm 7) Extendable telescopic pole

To achieve greater stability for your balcony net system, the telescopic rods are connected to each other using the connecting rods and connecting elements. These T-connectors are fitted on top of the extendable telescopic rods (onto the inner tube with 16 mm Ø) and permanently secured with the corresponding screw set. The spacing between the telescopic rods should not exceed 2 metres. Please note that all connecting elements offered cannot be attached to the lower end of the extendable telescopic pole. If you also wish to install a cross connection along the lower longitudinal side, you cannot use the extendable telescopic rods. In this case, you must use the connecting rods. You can then attach the connecting elements at both the top and bottom (in this case the connecting elements are slid onto the connecting rod and secured by the snap-in of the tripod spring). IMPORTANT: You do NOT need a screw when the T-connector is used together with the connecting rods. Screws are only required when the T-connector is mounted on our extendable telescopic pole. To secure the front of a balcony that is, for example, 4 m long, you will need the following parts: 2 x end connectors + screws 1 x T-connector + screws 2 x connecting rods à 2.0 m 3 x extendable telescopic rods up to 210 cm 3 x telescopic pole brackets (wall bracket, railing bracket, or masonry bracket) 1 x Boy cat net 1 x cable ties (pack of 100) If the netting is to be extended further towards the house wall, you will need an additional corner angle connector. Please refer to our installation guide and technical drawings. Frame System for a 2 m Long Balcony or Terrace Frame System for a 2.4 m to 3.8 m Long Balcony or Terrace Frame System for a 4 m Long Balcony or Terrace Frame System with Extendable Telescopic rods for a 3.5 m Long Balcony with Corner 1) End connector 2) T-connector 3) Corner angle connector 4) Connecting rod 200 cm 5) Connecting rod 100 cm 6) Connecting rod 120 - 190 cm 7) Extendable telescopic pole Frame System with Connecting Rods - Wall with Corner and Over-Climb Protection

Infinitely adjustable connecting rod from 60 to 85 cm. This connecting rod is required to adjust the frame length to match the length of the balcony. When used in combination with the other connecting rods, almost any desired length can be achieved. Color: Galvanized silver‑colored zinc‑plated Frame system with extendable telescopic poles for a 3.5 m long balcony with a corner 1) End joint2) T‑joint3) Corner joint4) Connecting rod 200 cm5) Connecting rod 100 cm6) Connecting rod 120–190 cm7) Extendable telescopic rod
