End connection for our telescopic pull-out rods and connecting rods
End connection for our telescopic pull-out rods and connecting rods
End connection - suitable for our telescopic rods for pulling out. If the balcony is only networked at the front, then these end connections are used. This end connection is mounted on the first and last telescopic rod of the frame construction. Easy construction.
Product number:
380107
Product information "End connection for our telescopic pull-out rods and connecting rods"

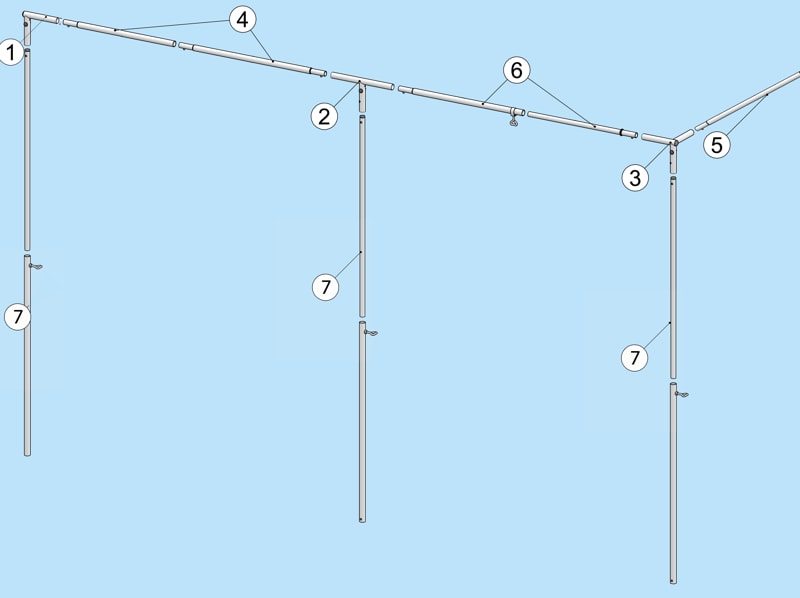

In order to obtain a higher stability of your balcony network, the telescopic rods are connected to each other by means of the connecting rods and connecting elements.
.
These end connections are placed ABOVE on the first and last telescopic rods for pulling out (on the insertion tube with 16mm Ø) and permanently fixed with the appropriate screws. Please note that all connecting elements offered CANNOT be attached to the lower end of the telescopic rod for pulling out.
.
If you also want to install a cross connection on the lower long side, then you cannot use the telescopic rods to extend it. In this case, you need to use the connecting rods. Then you can attach the connecting elements at the top and bottom (in this case, the connecting elements are placed on the connecting rod and secured by the tripod spring engaging).
.
CAUTION: You do NOT need a screw when inserting the fastener with the connecting rods. Screws are only required if the connecting elements are mounted on the telescopic rod for pulling out.
.
If you use the telescopic rods for pulling out, please do not forget to order the screws.
Further information
| Product number: | 380107 |
|---|---|
| Application area: | Balcony, terrace and garden |
| Color: | silver galvanized |
| Material: | steel |
| Suitable for :: | Telescopic rods for pulling out and connecting rods |
| diameter: | 19mm |
| Manufacturer: | Boy-Katzennetze |
