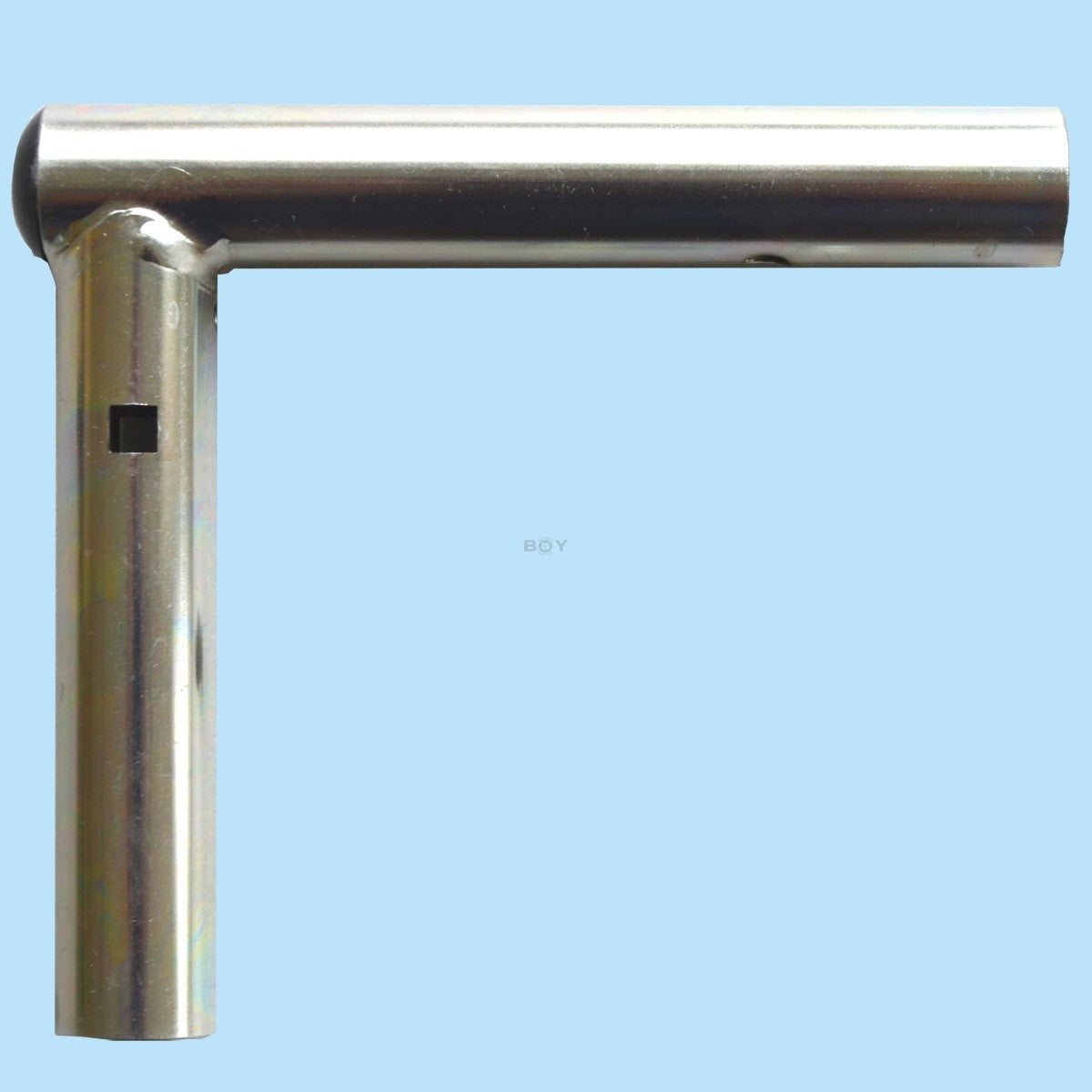

End connection for our telescopic rods for extension and connecting rods

For greater stability of your balcony netting, the telescopic rods are connected to each other using connecting rods and connectors.

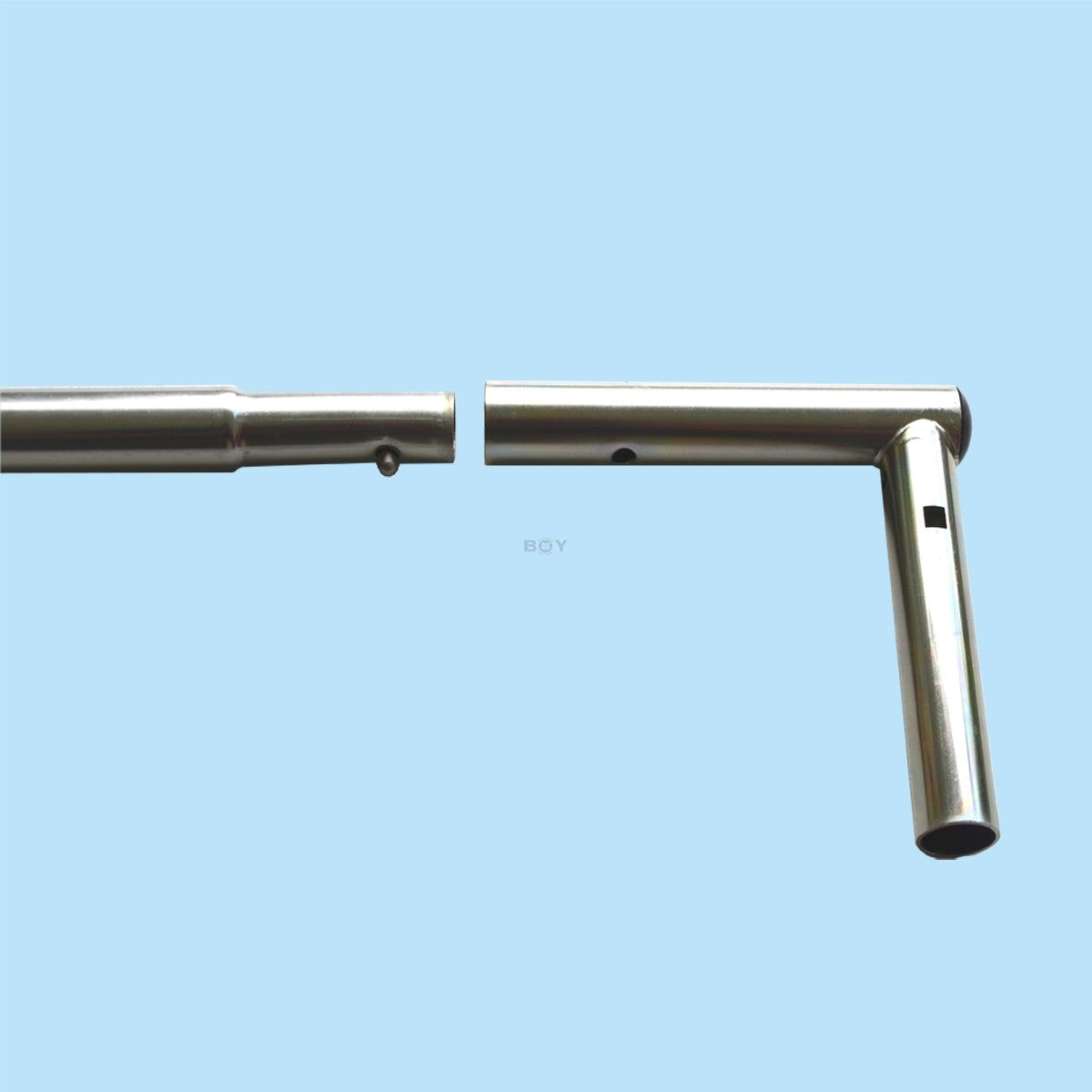

These end connectors are attached ON TOP of the first and last extendable telescopic rod (onto the 16 mm Ø insertion tube) and permanently secured with the corresponding screws. **Important:** All offered connecting elements CANNOT be attached to the lower end of the extendable telescopic rod.

If you also want to install a cross-connection on the lower longitudinal side, you cannot use the extendable telescopic poles. In this case, you must use the connecting rods. Then you can attach the connecting elements at the top and bottom (the connecting elements are placed on the connecting rod and secured by the snapping of the tripod spring).

ATTENTION: You do NOT need a screw if the connecting element is used together with the connecting rods. Screws are only needed if the connecting elements are mounted on the extendable telescopic pole.

If you use the extendable telescopic poles, please do not forget to order the screws as well.

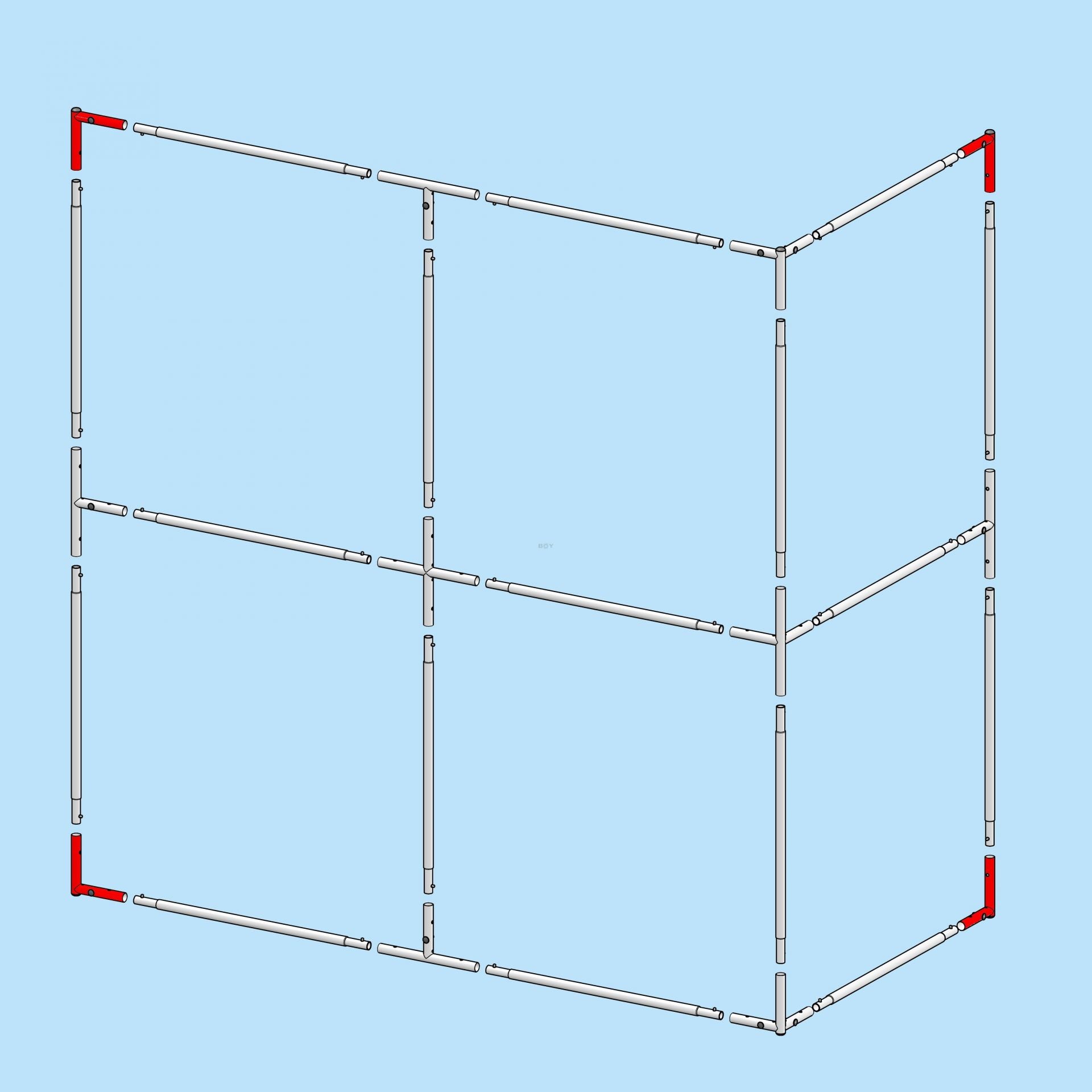

Frame system with extendable telescopic poles for a 3.5 m long balcony with a corner

• 1) End connector
• 2) T-connector
• 3) Corner angle connector
• 4) Connecting rod 200 cm
• 5) Connecting rod 100 cm
• 6) Connecting rod 120–200 cm
• 7) Extendable telescopic pole
