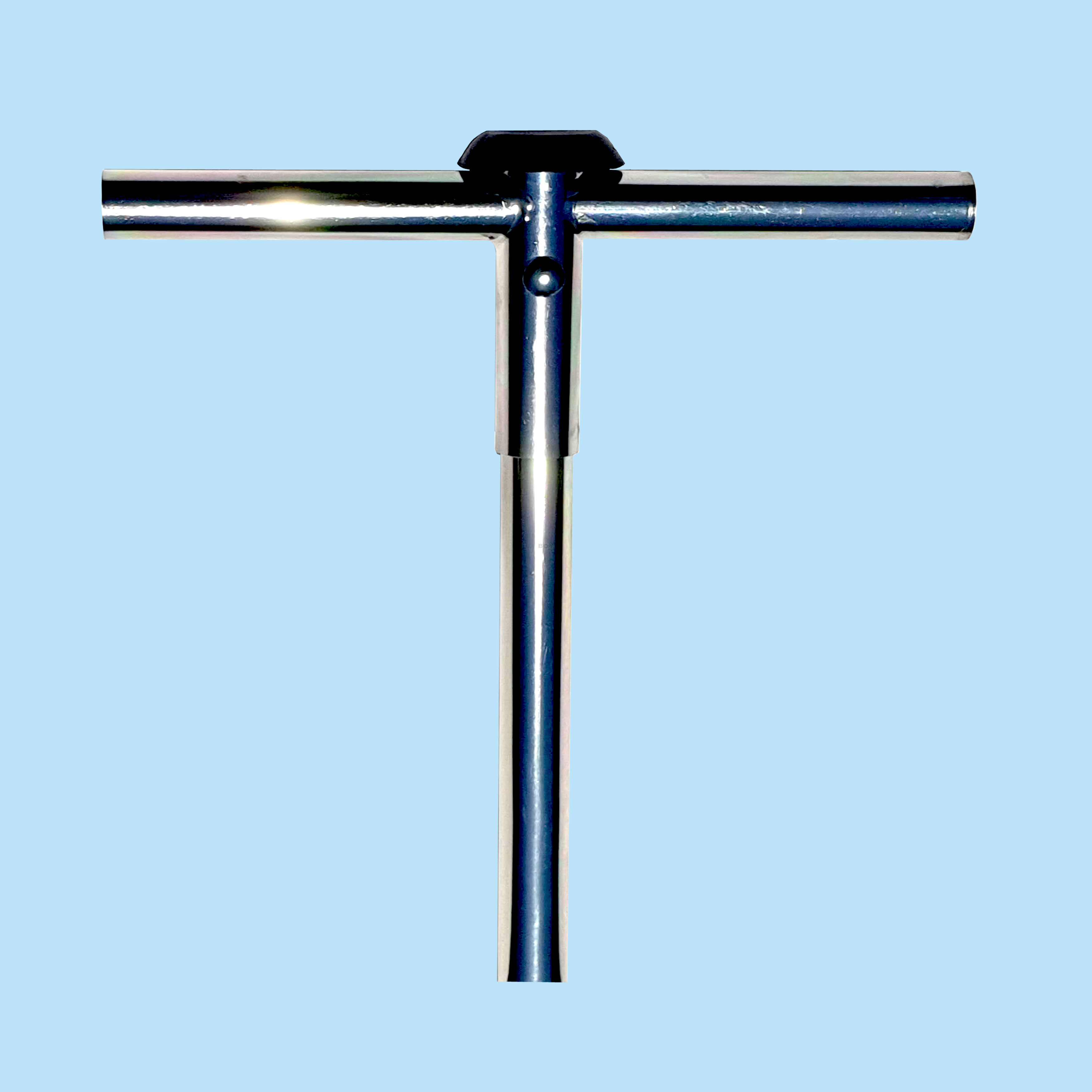

Tie rods - T connection
Tie rods - T connection

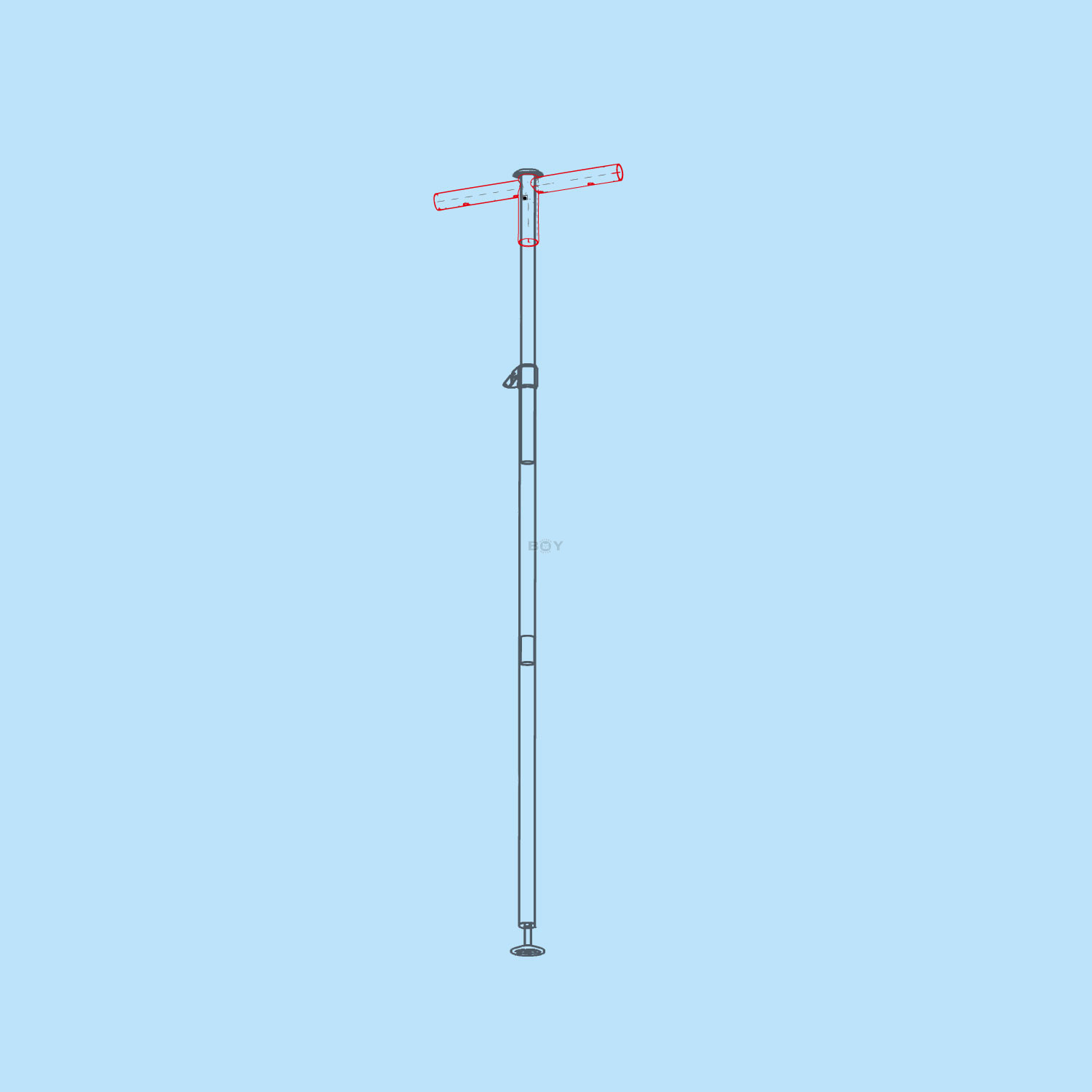

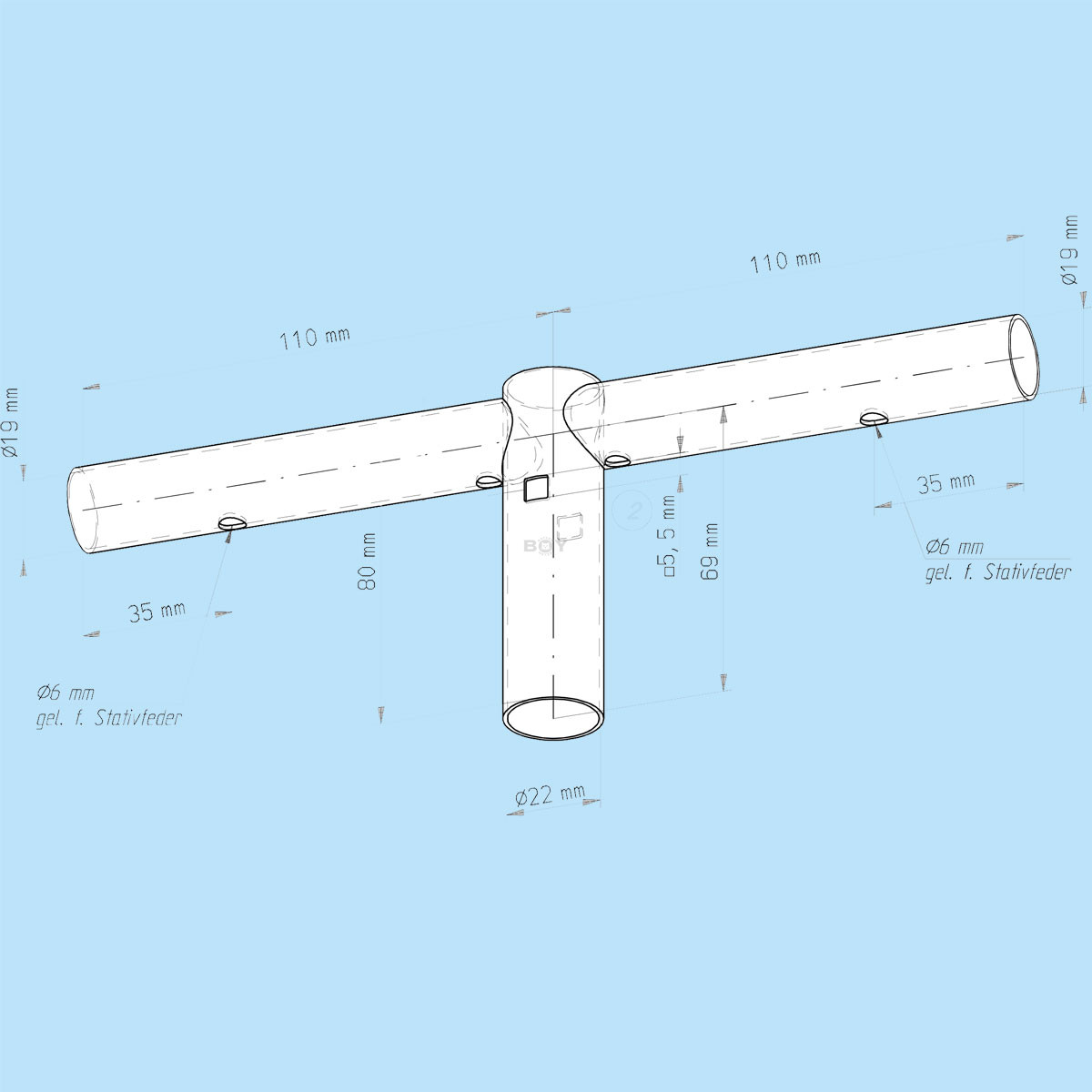

This T-connection element is specially designed for our telescopic rods for clamping up to 300cm. This connecting element is also attached to the top of the telescopic rod with a screw. The tie rods are connected to one another with the connecting rods.
Product number:
385127
Product information "Tie rods - T connection"

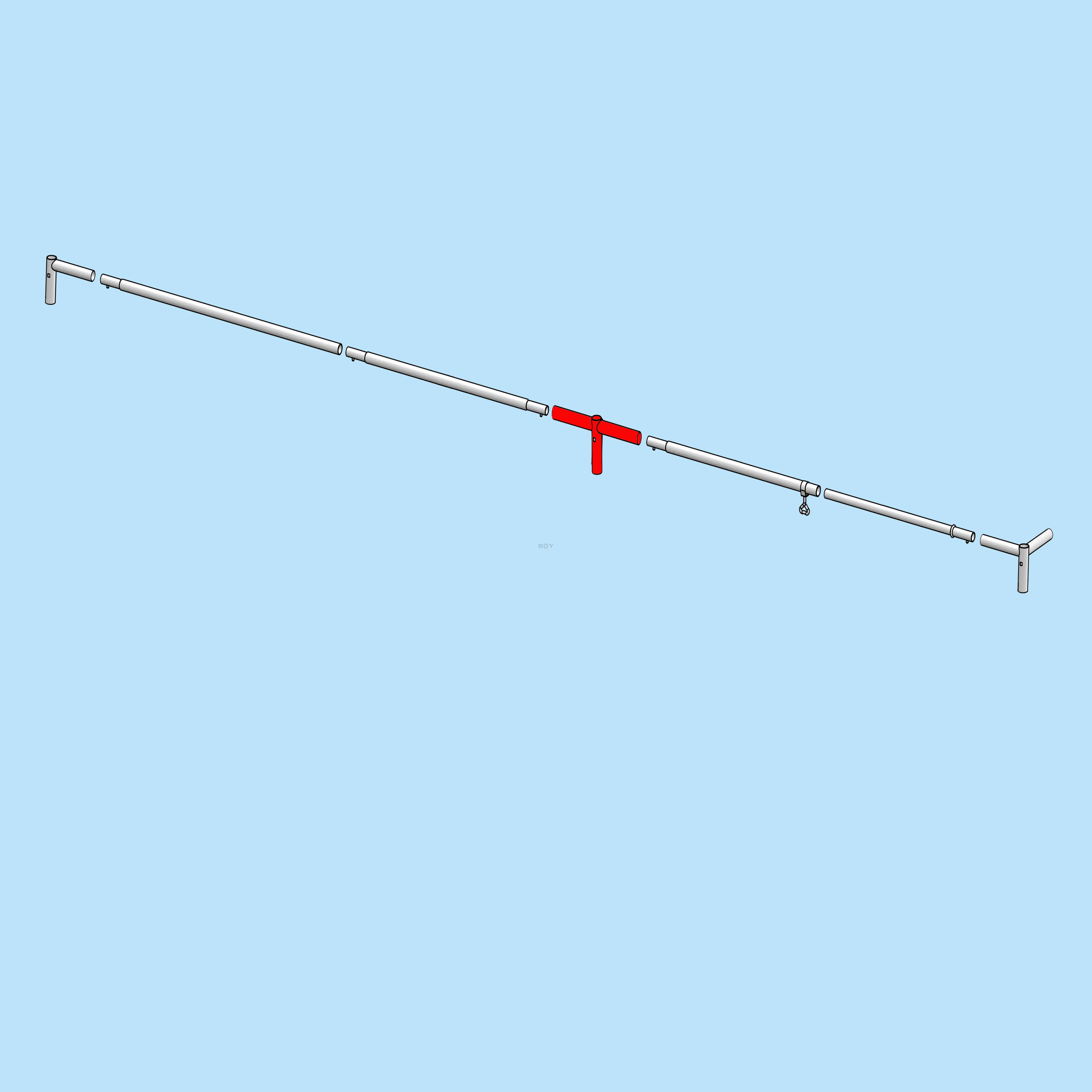

If several telescopic rods are to be connected to each other for tensioning, then this T-connection is required. The upper slide-in tube of the tension rod is pushed through the T-connection. The insertion tube has a hole at the top for the braided line. A screw (must be ordered separately) is now inserted and screwed through the T-connection and through the hole in the insertion tube. Finished. Push the insertion tube back into the telescopic rod and adjust it with the turnbuckle.
Only our connecting rods can be used to connect the telescopic rods for tensioning.
Further information
| Product number: | 385127 |
|---|---|
| Application area: | Balcony, terrace and garden |
| Color: | silver galvanized |
| Material: | steel |
| Surface: | galv. Verzinkt |
| diameter: | 22/19mm |
| Manufacturer: | Boy-Katzennetze |
Login
Skip product gallery
Telescopic rod for clamping up to 300cm, Ø 22mm - silver-colored galvanized
You do not need any other bracket to attach this telescopic pole for tensioning, as it is simply stretched between the ceiling and the floor. The tie rods consist of 3 tubes with a diameter of 22mm, which are inserted into each other. The telescopic rod can be continuously adjusted to the correct height with the turnbuckle. Use a wrench (not included in the scope of delivery) to unscrew the clamping foot until the telescopic rod has a firm hold.
.
The tension rod can be used up to a maximum ceiling height of 300 cm. At the top the telescopic rod has a hole for attaching the tension cord or for attaching the connecting elements. The Boy cat net is attached to the telescopic pole with net ties or net twine - done.
.
Attention: This tension rod is not suitable for balconies made of wood or soft materials. In order for the tension to hold, the floor and ceiling must be made of stone / concrete. The T-bar can come loose due to temperature fluctuations.
.
Available in the colour: galvanized, silver-colored
Diameter: outer tube: 22mm / inner tube: 19mm
Clamping force: up to approx. 90 kg
.
New - cross connections for tie rods for even more stability and security
€26.95 /Piece
Prices incl. VAT plus shipping costs
Screw set for fastening the connecting elements for telescopic rods for tensioning
You need this screw set if you want to attach a Connection on to a Tie Rod.
€0.95 /Set
