Tie rods - corner connection
Tie rods - corner connection

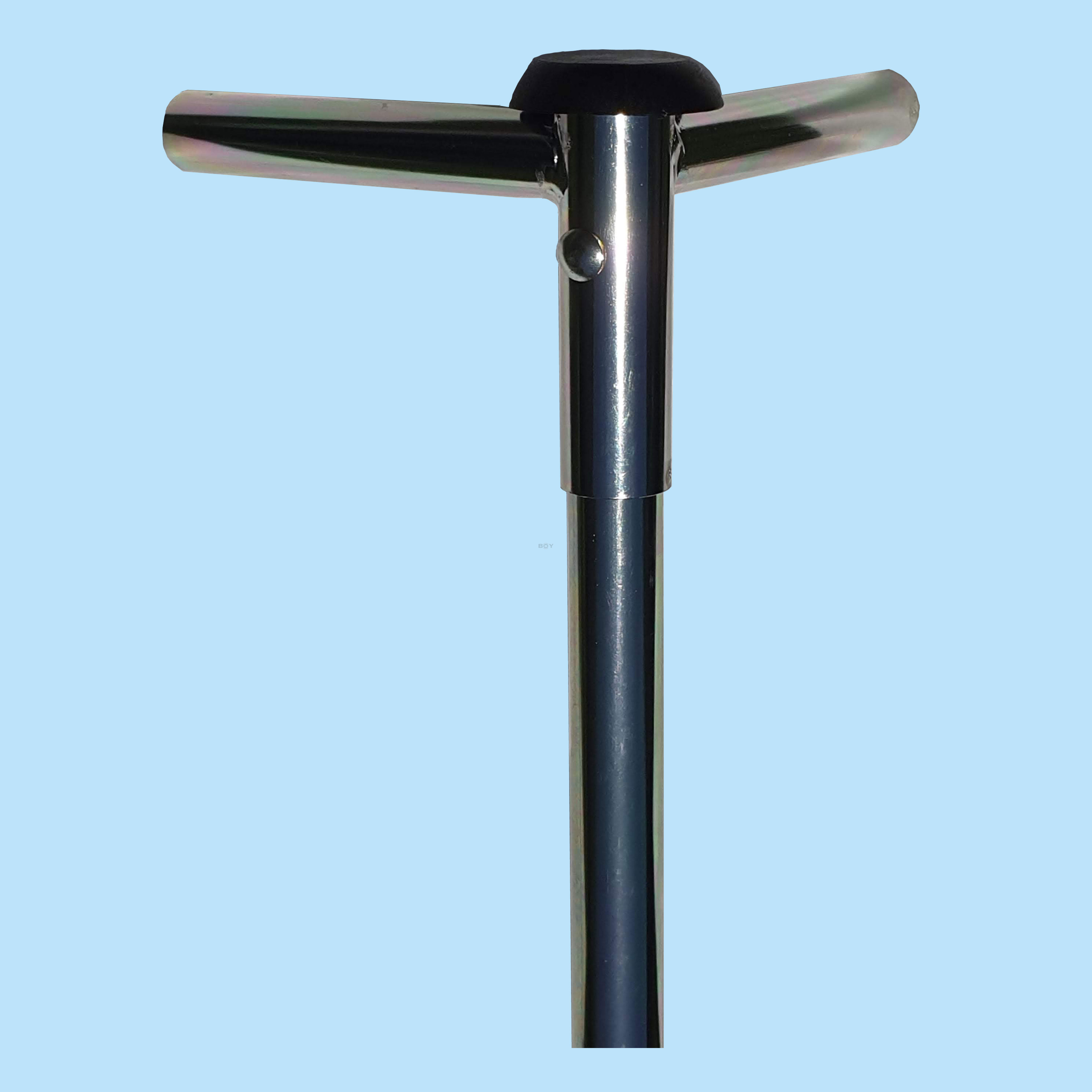

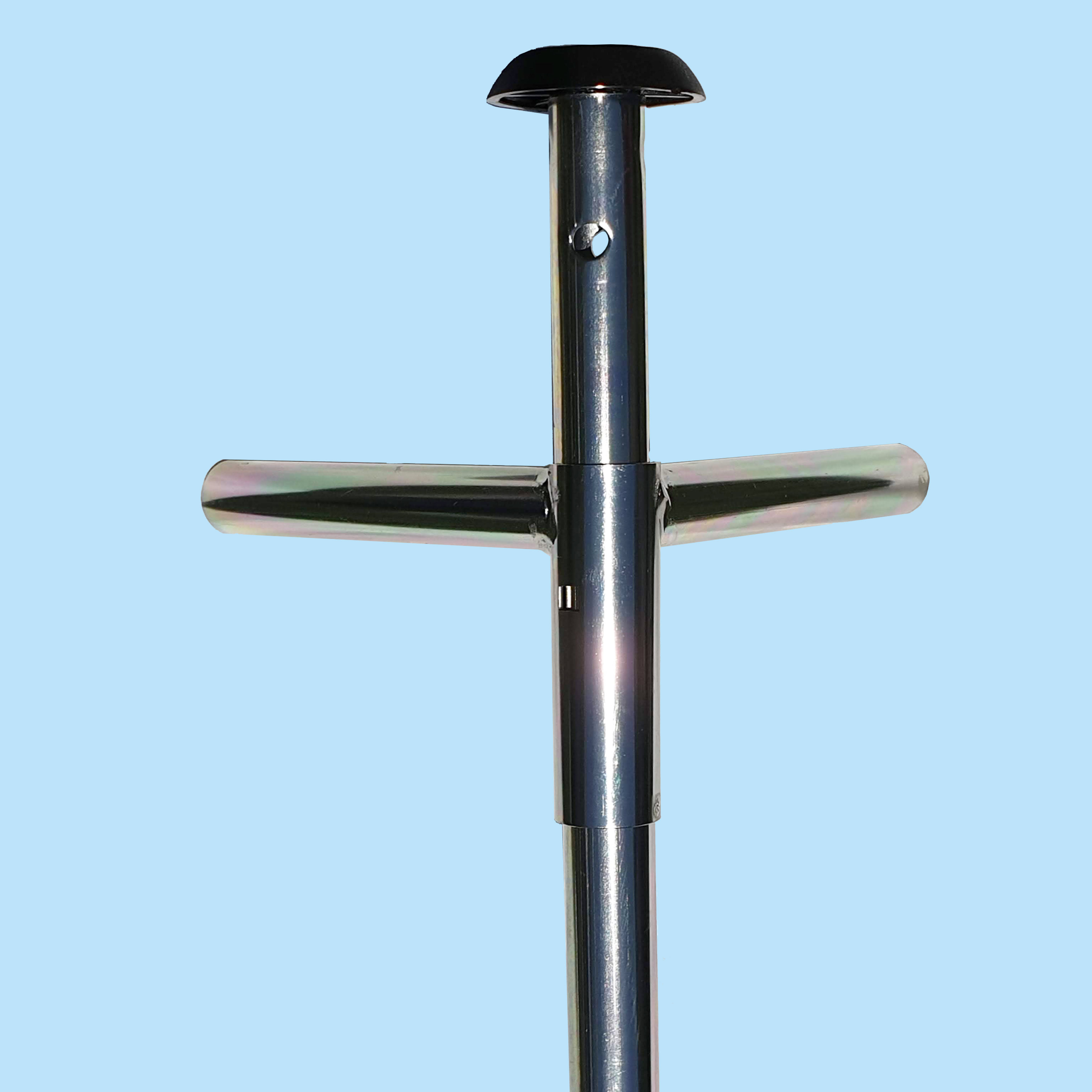

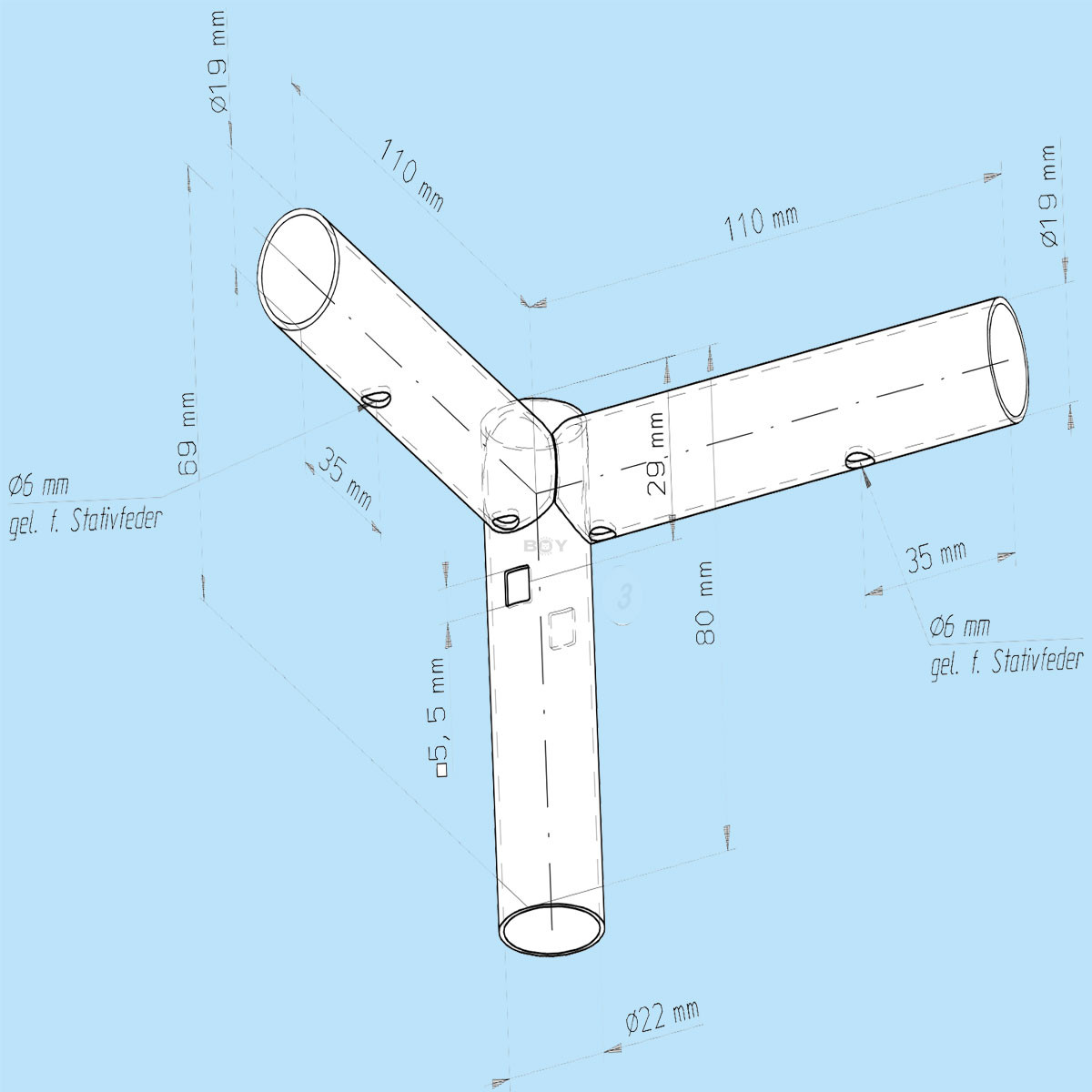

90 ° corner connection for our telescopic rods for clamping. It is required to connect two tie rods at the top with a connecting rod. Only suitable for our telescopic rods for clamping up to 300cm and with a diameter of 22 / 19mm.
Product number:
385147
Product information "Tie rods - corner connection"

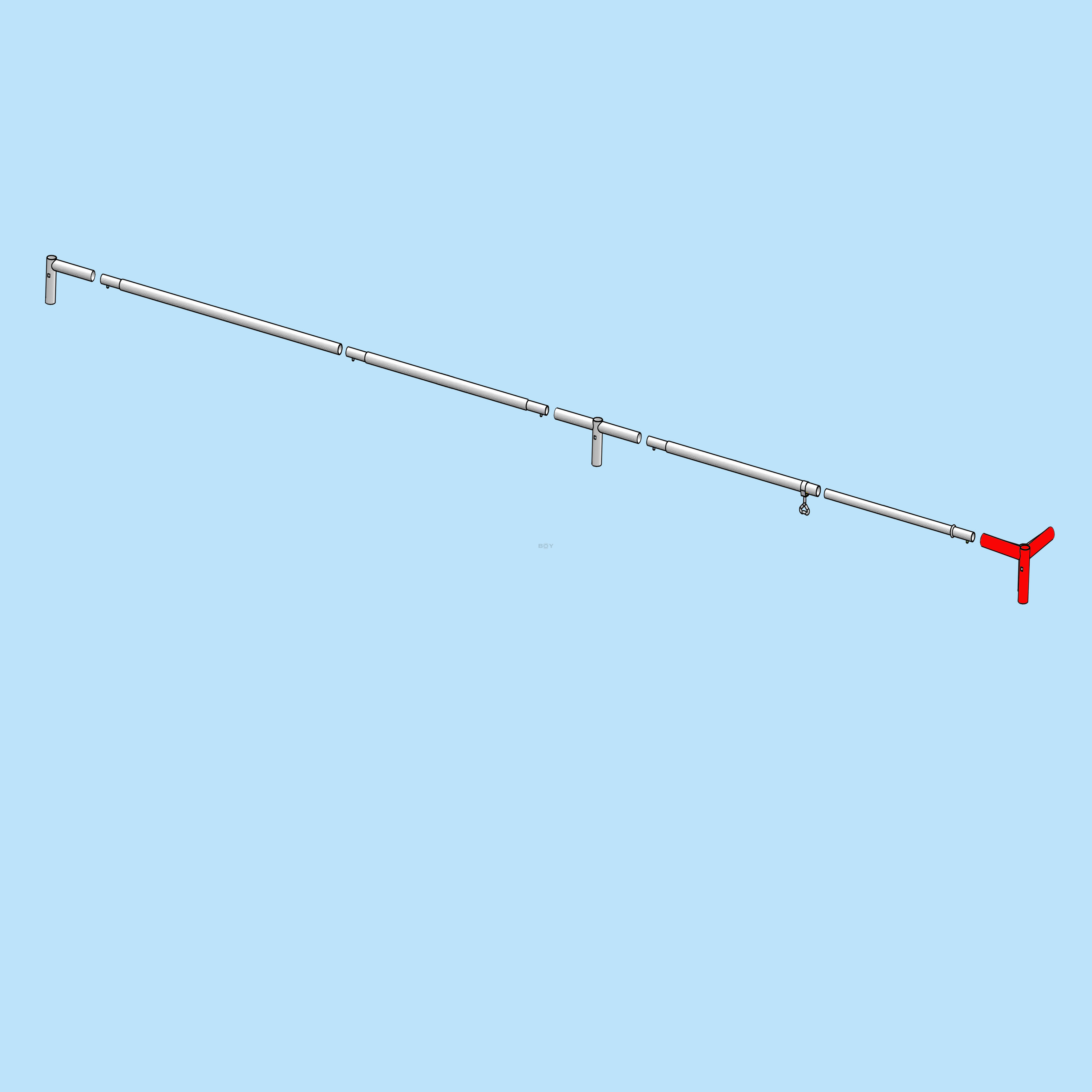

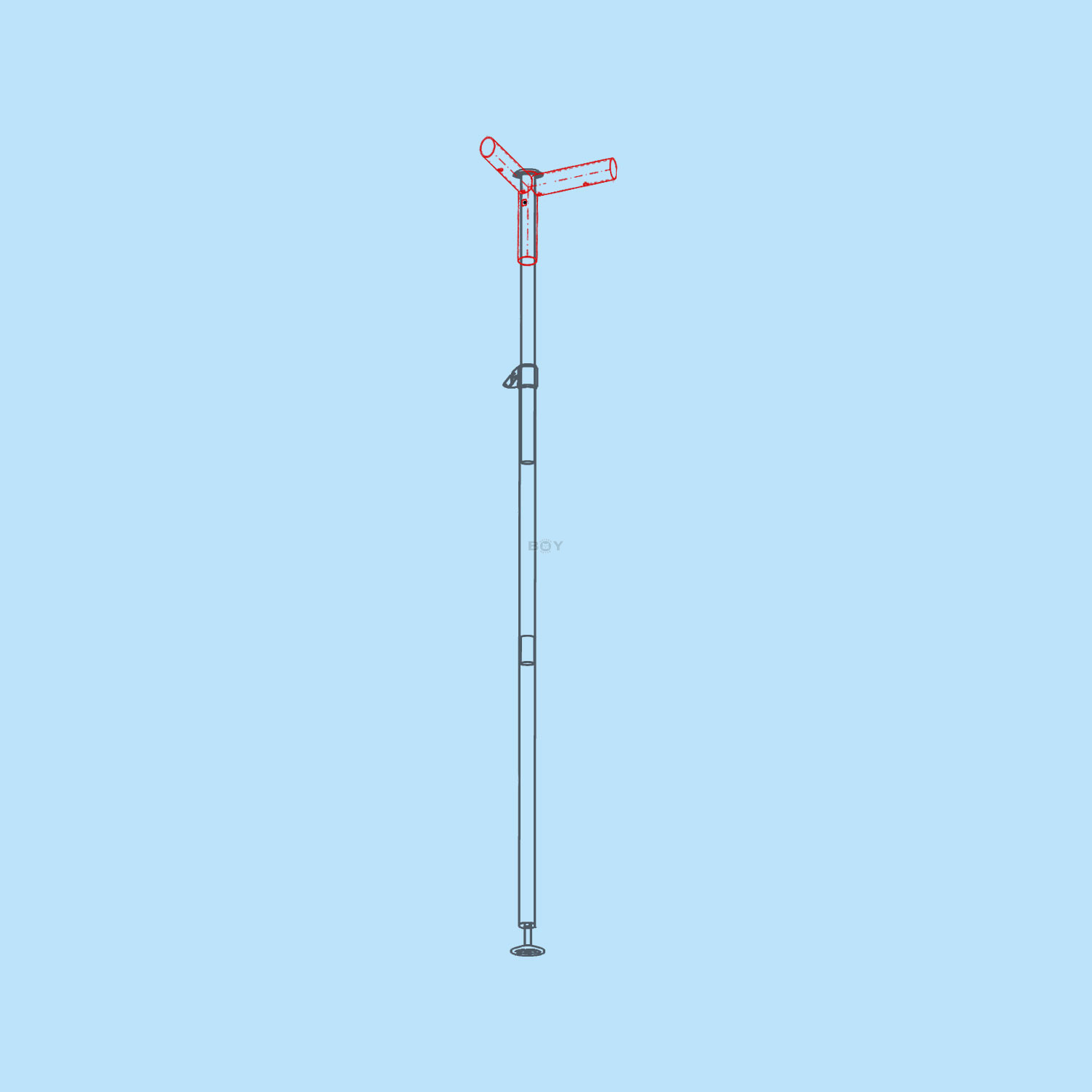

If 2 telescopic rods are to be connected to a connection rod for clamping across corners, then this corner connection is required. The upper slide-in tube from the tension rod is pushed through the corner connection. The corner connection is fastened with a screw (not included in the scope of delivery) underneath the plastic plate. Only our connecting rods can be used to connect the telescopic rods to each other for tensioning.
Further information
| Product number: | 385147 |
|---|---|
| Application area: | Balcony |
| Color: | silver galvanized |
| Material: | steel |
| Suitable for :: | Telescopic rods for clamping up to 300cm |
| Weight per piece: | about 250 grams |
| diameter: | 22/19mm |
| Manufacturer: | Boy-Katzennetze |
Login
Skip product gallery
Telescopic rod for clamping up to 300cm, Ø 22mm - silver-colored galvanized
You do not need any other bracket to attach this telescopic pole for tensioning, as it is simply stretched between the ceiling and the floor. The tie rods consist of 3 tubes with a diameter of 22mm, which are inserted into each other. The telescopic rod can be continuously adjusted to the correct height with the turnbuckle. Use a wrench (not included in the scope of delivery) to unscrew the clamping foot until the telescopic rod has a firm hold.
.
The tension rod can be used up to a maximum ceiling height of 300 cm. At the top the telescopic rod has a hole for attaching the tension cord or for attaching the connecting elements. The Boy cat net is attached to the telescopic pole with net ties or net twine - done.
.
Attention: This tension rod is not suitable for balconies made of wood or soft materials. In order for the tension to hold, the floor and ceiling must be made of stone / concrete. The T-bar can come loose due to temperature fluctuations.
.
Available in the colour: galvanized, silver-colored
Diameter: outer tube: 22mm / inner tube: 19mm
Clamping force: up to approx. 90 kg
.
New - cross connections for tie rods for even more stability and security
€26.95 /Piece
Prices incl. VAT plus shipping costs
Screw set for fastening the connecting elements for telescopic rods for tensioning
You need this screw set if you want to attach a Connection on to a Tie Rod.
€0.95 /Set
Prices incl. VAT plus shipping costs
