Door net frame - Standard dimensions - white + brown -

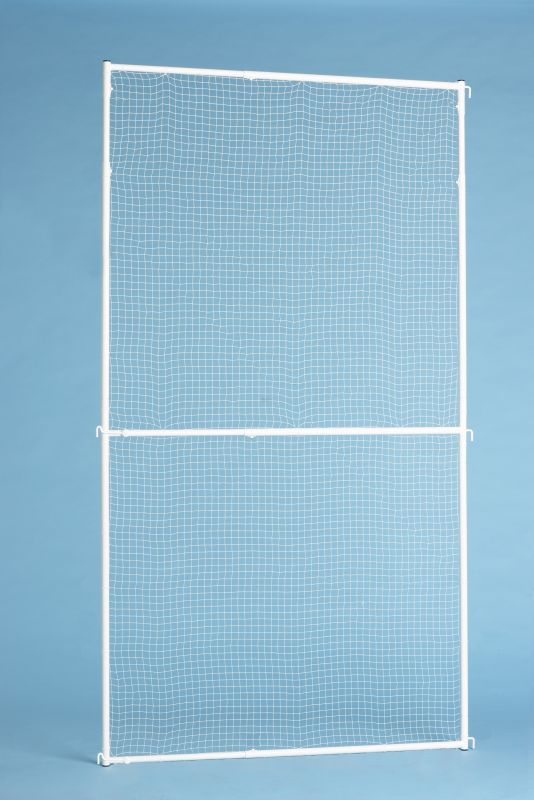

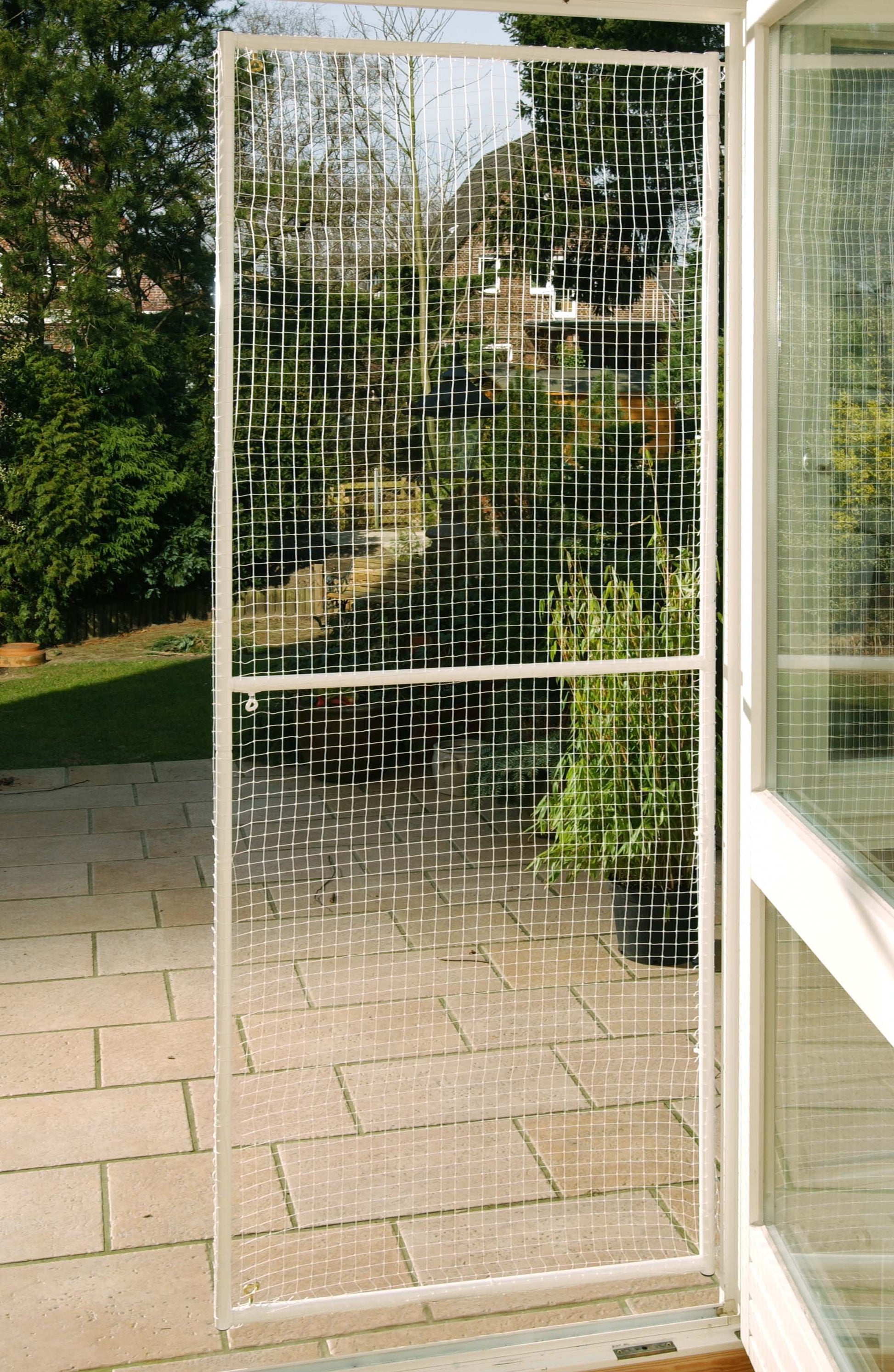

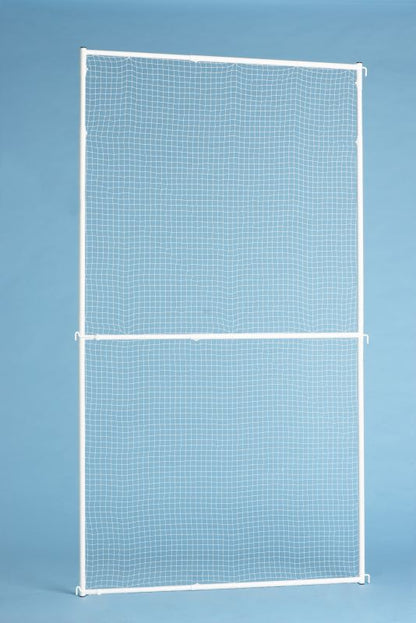

This BOY cat net door allows most common patio and balcony doors to be closed in a cat-proof manner. The size of the frame can be continuously adjusted in width from 80cm to 120cm and in height from 190cm to 220cm. Set includes matching white door net with 20mm mesh size.

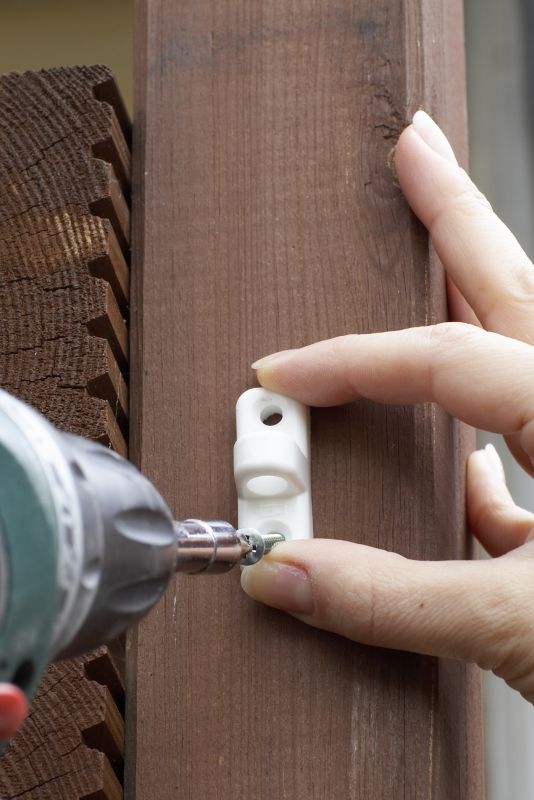

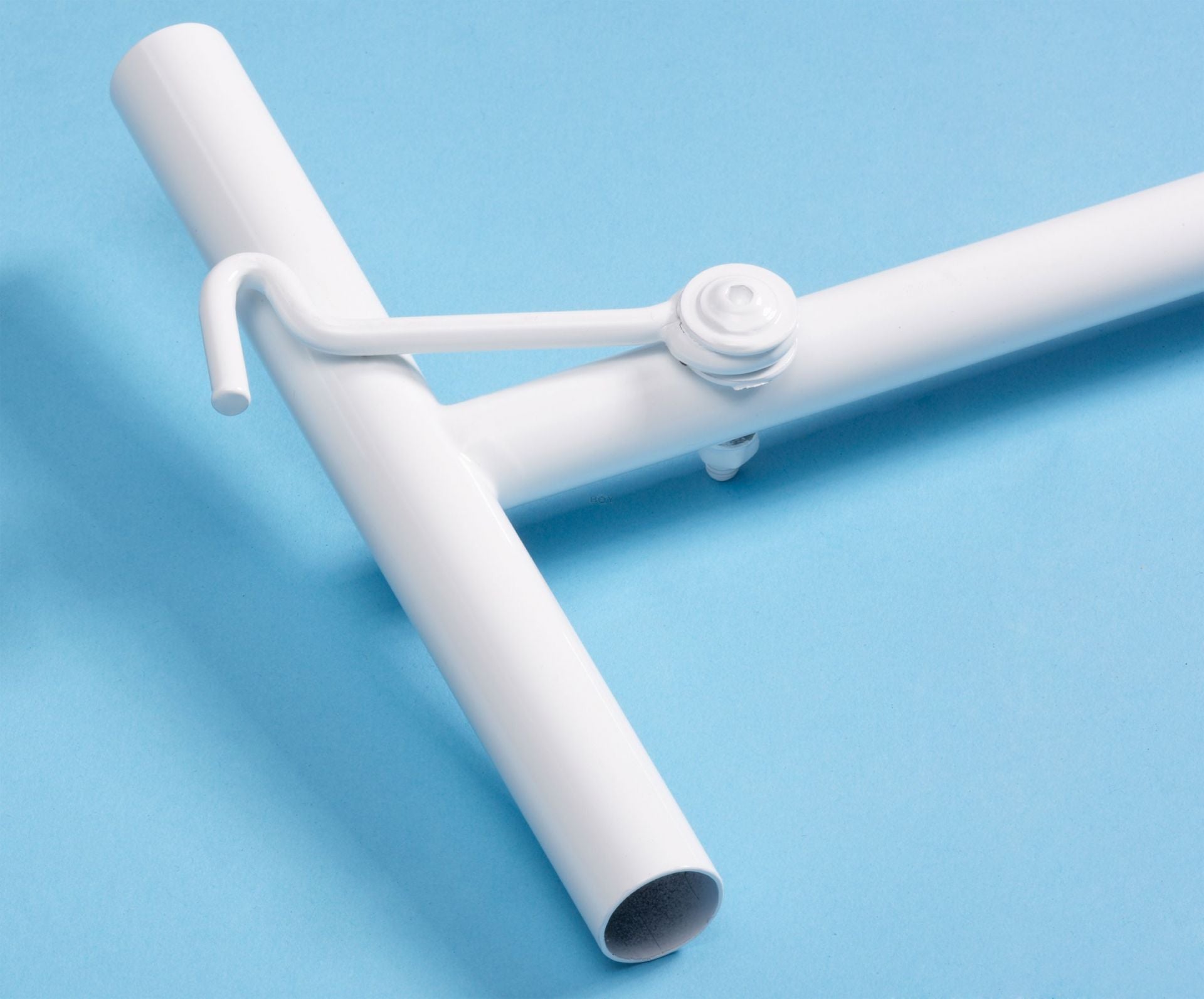

The frame has an outer diameter of 22mm or 19mm (inner tube). The scope of delivery includes, in addition to the door frame, a white Boy cat net with 20mm mesh size, 3 plastic hangers (hinges) into which the door is hooked, and two hook locks (one in the middle and one at the bottom so that the cat cannot push the frame away). The 3 hinges are permanently screwed to the house wall or door frame with 2 screws each. For the cat door to be properly closed, the eye screws for the hook locks must be screwed into the wall or door frame.

The easiest way to attach the cat net to the frame is with our 140mm long net binders (not included in the scope of delivery - please order separately). By the way, it is important that the door net is well tensioned, as the tension contributes to the stability of the door.

Attention: It may be necessary to drill to attach the hinges. You will need a screwdriver to adjust the frame tubes with the set screws.

Youtube Video Clip - Assembly

Our assembly instructions (PDF)

The hooks and hinges require approx. 3cm of additional space. If the door is to be mounted in a frame, this must therefore be at least 85 cm wide.

This cat safety door is available in the colors: white and brown.
