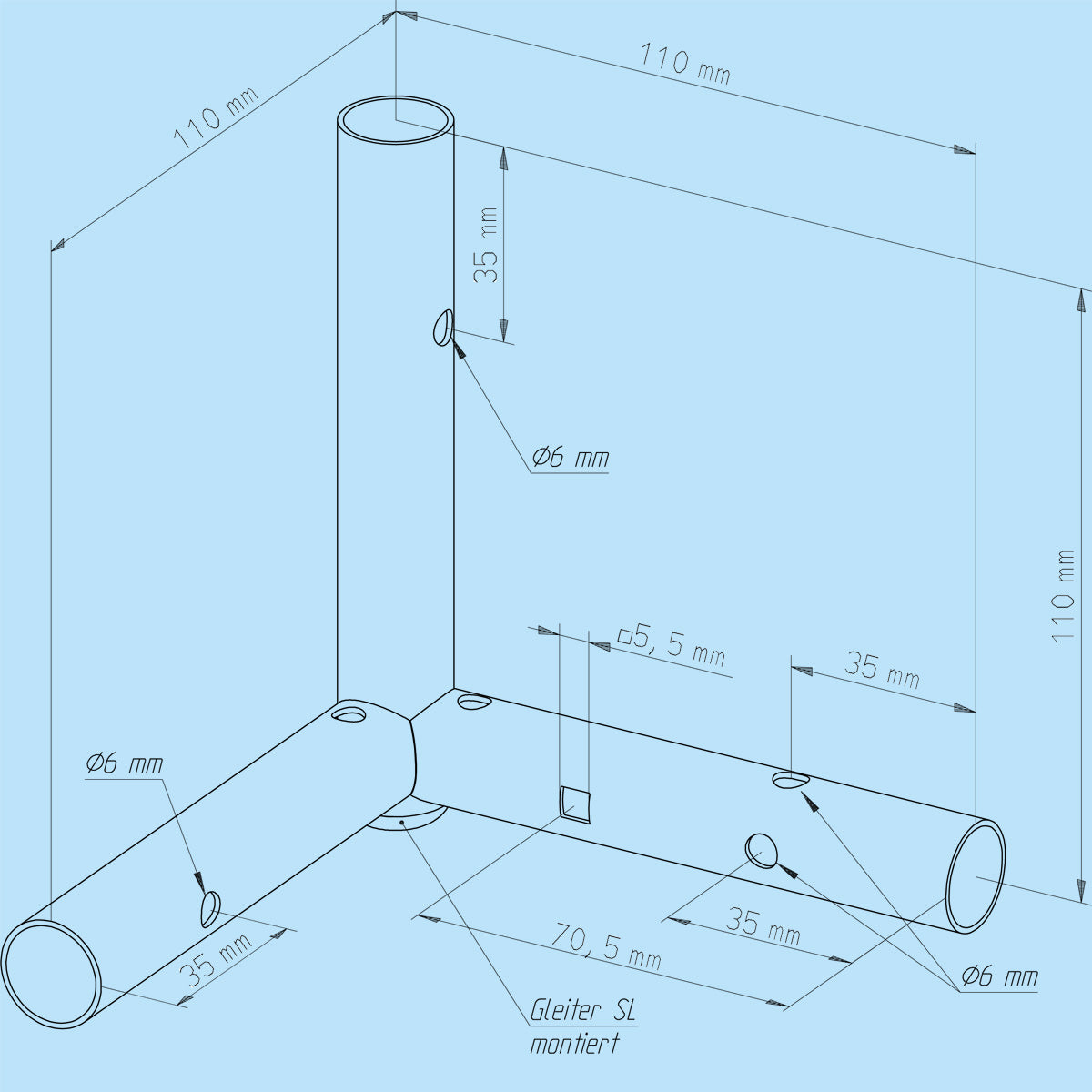

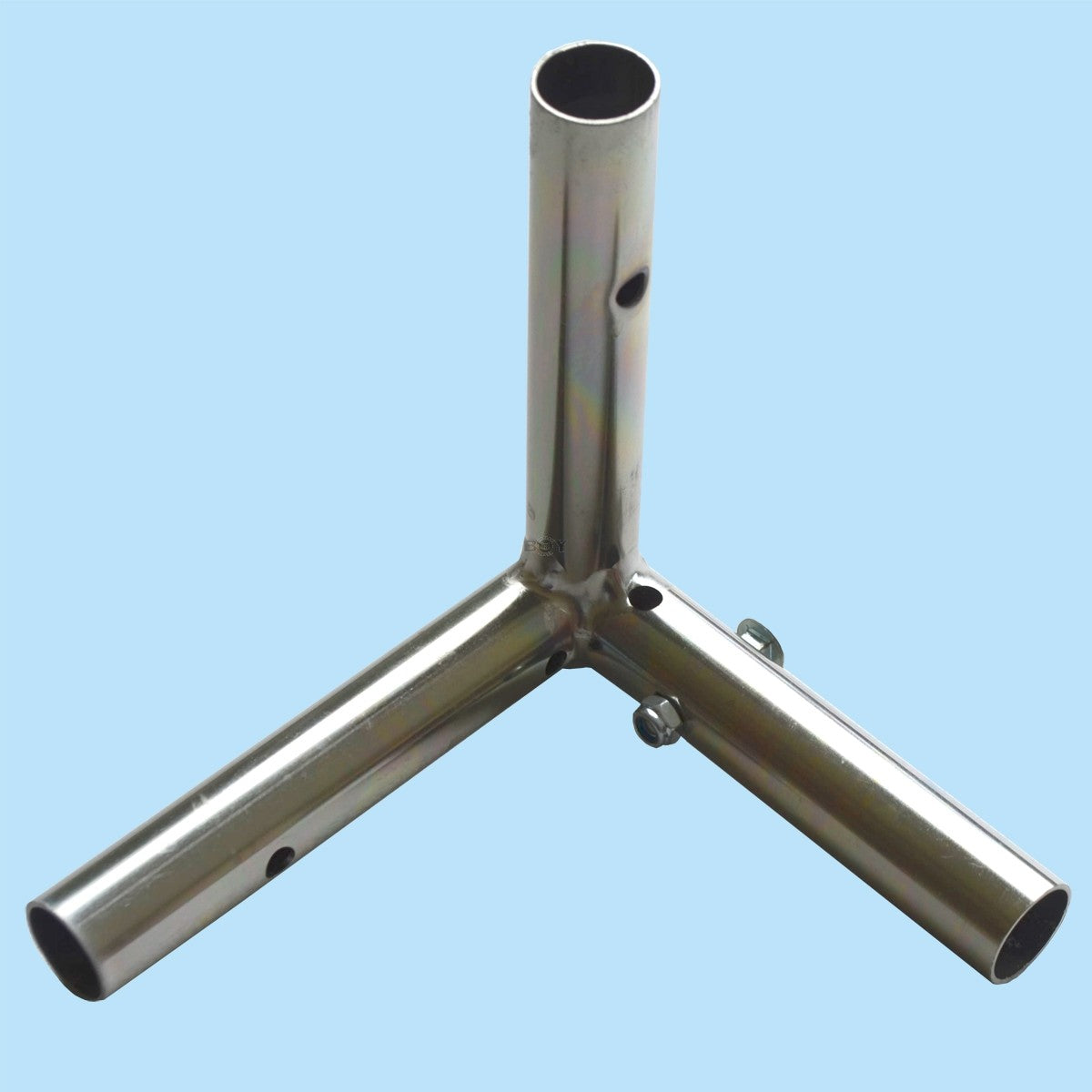

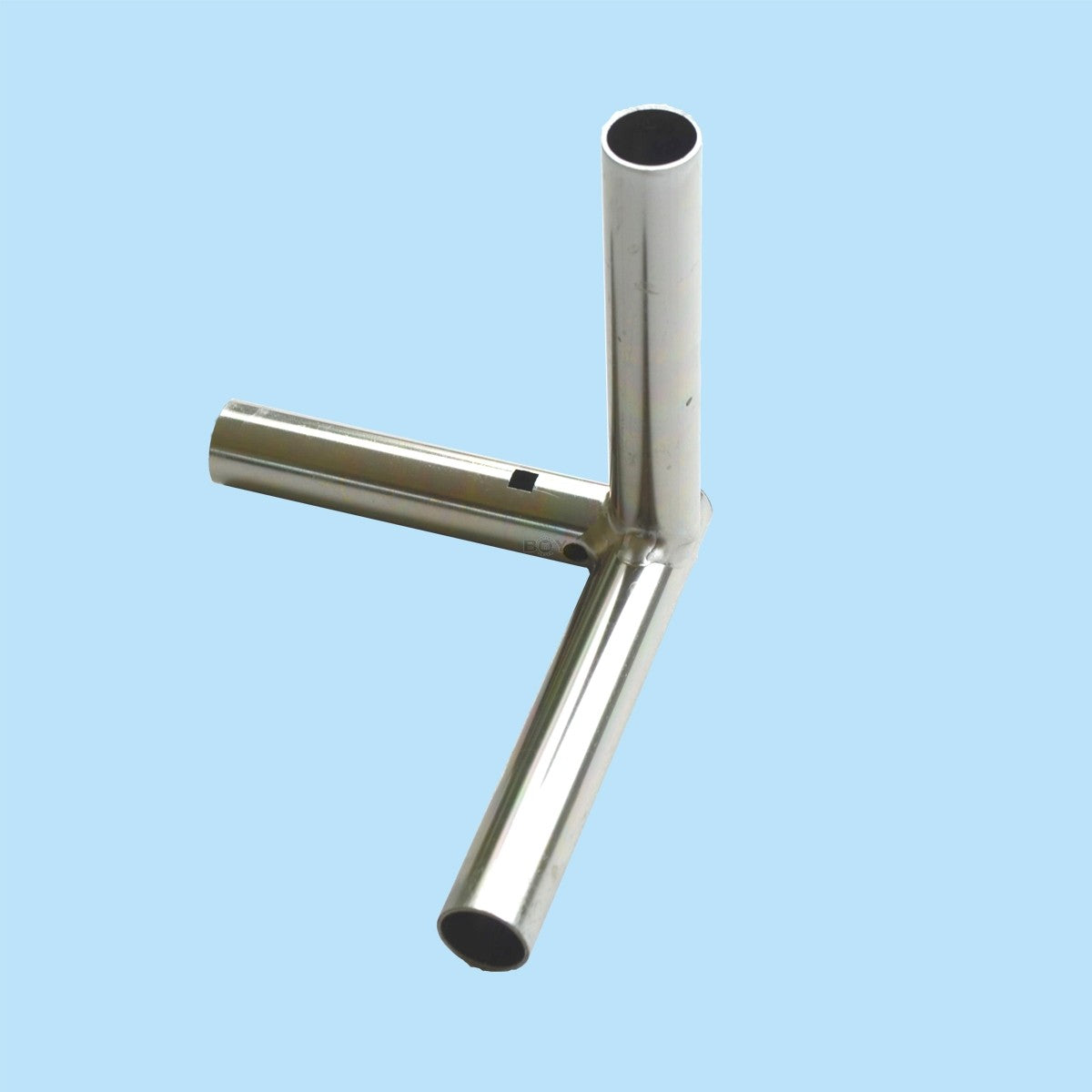

Corner Connector for our Extendable Telescopic and Connecting Rods

For greater stability of your balcony netting, the telescopic rods are connected to each other using connecting rods and connecting elements.

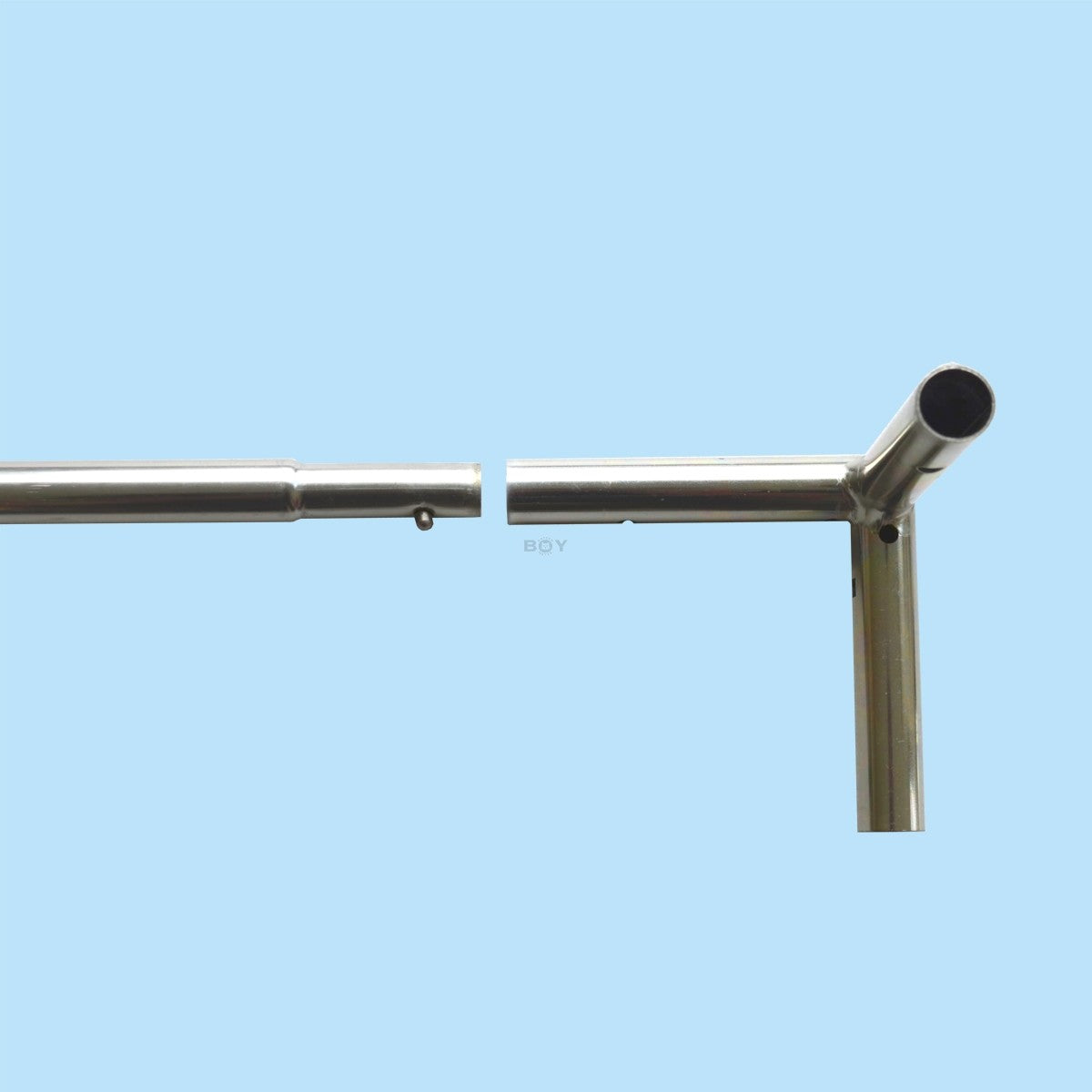

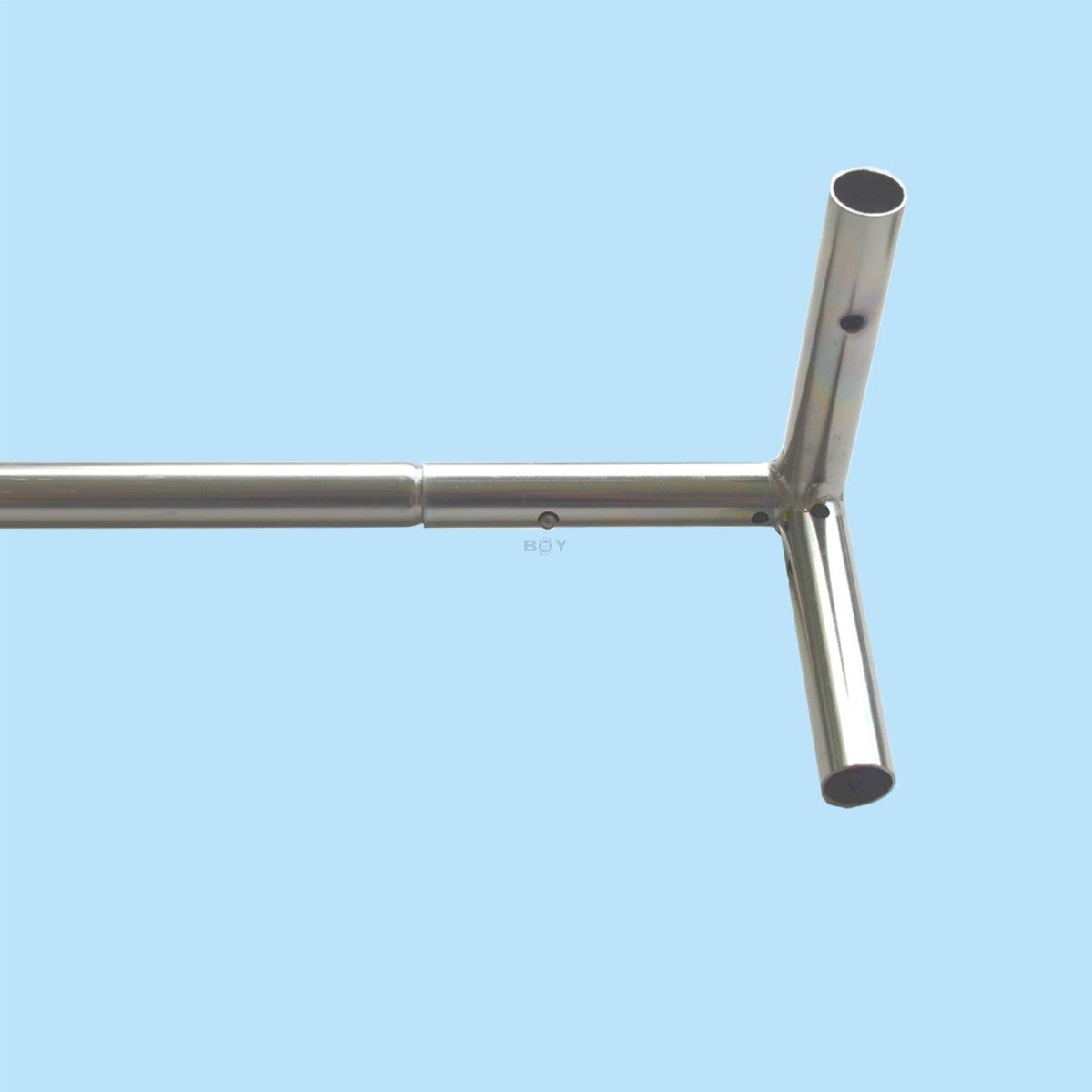

These corner connectors are placed on top of the extendable telescopic rods installed in the corners (on the 16 mm Ø insert tube) and permanently fastened with the corresponding screws. The distance between the telescopic poles should not exceed 2 meters. Please note that all connecting elements offered cannot be attached to the lower end of the extendable telescopic pole.

If you also want to install a cross-connection on the lower long side, then you cannot use the extendable telescopic rods. In this case, you must use the connecting rods. Then you can attach the connecting elements at the top and bottom (in this case, the connecting elements are placed on the connecting rod and secured by the tripod spring snapping into place).

ATTENTION: You do NOT need a screw if the corner connectors are used together with the connecting rods. Screws are only needed when the corner connectors are mounted on our extendable telescopic poles.

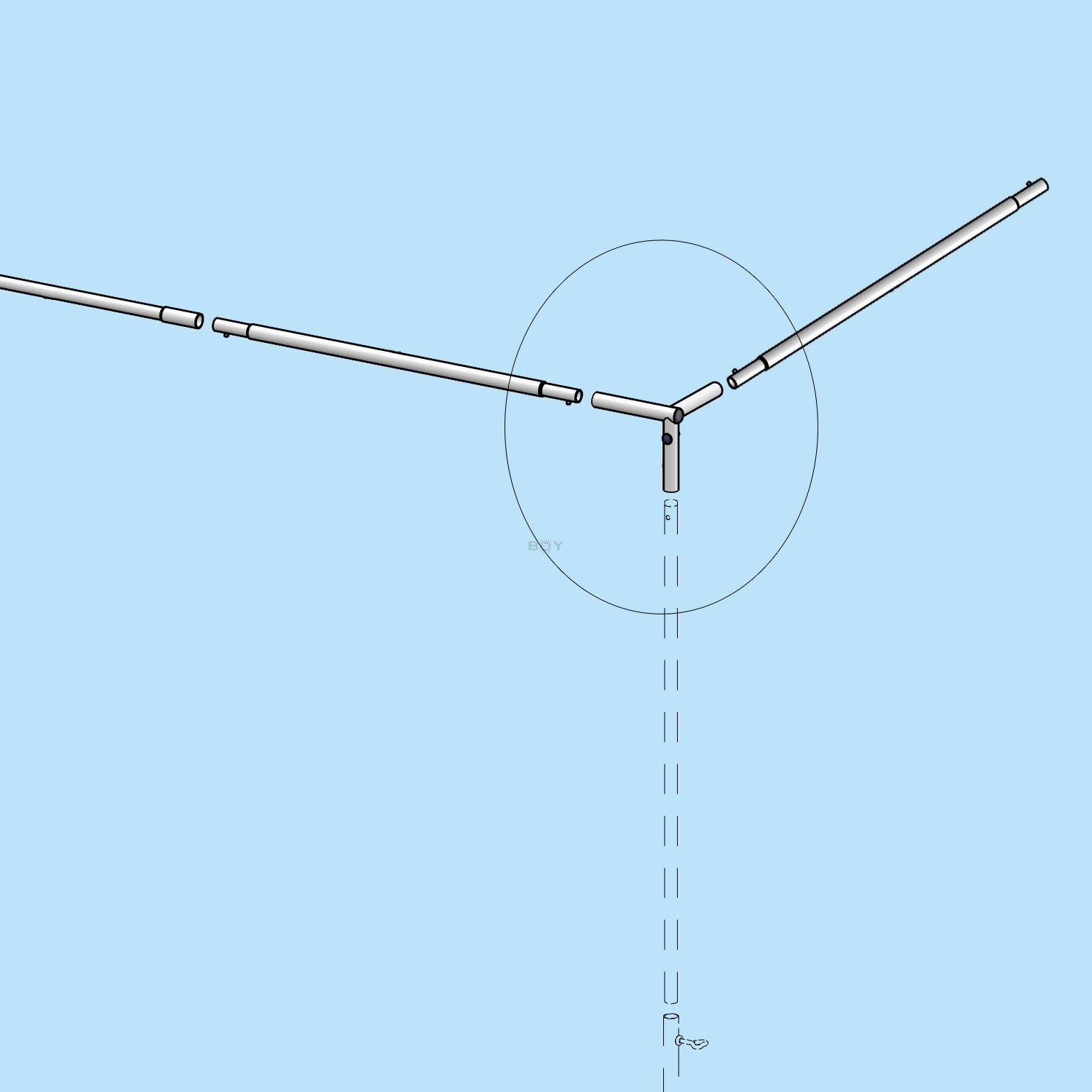

If the balcony is also to be netted on the sides, then these corner connectors are required. They are placed on the already installed telescopic pole in the corner.

Color: silver galvanized
Suitable for: Boy telescopic poles for extending and connecting rods
Material: Steel, galvanized

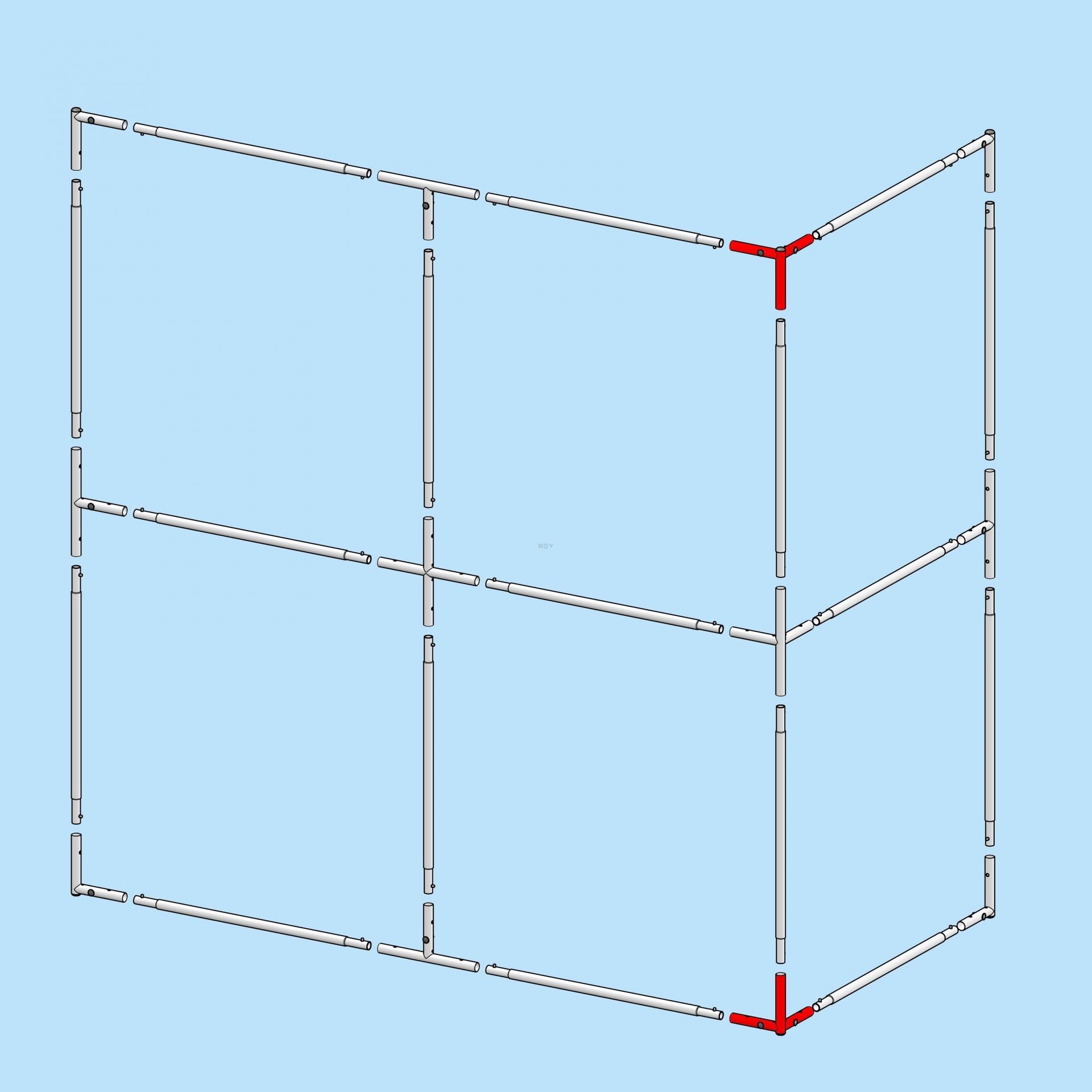

Frame system with extendable telescopic rods for a 3.5 m long balcony with a corner

• 1) End connector
• 2) T-connector
• 3) Corner angle connector
• 4) Connecting rod 200 cm
• 5) Connecting rod 100 cm
• 6) Connecting rod 120 - 200 cm
• 7) Extendable telescopic rod
