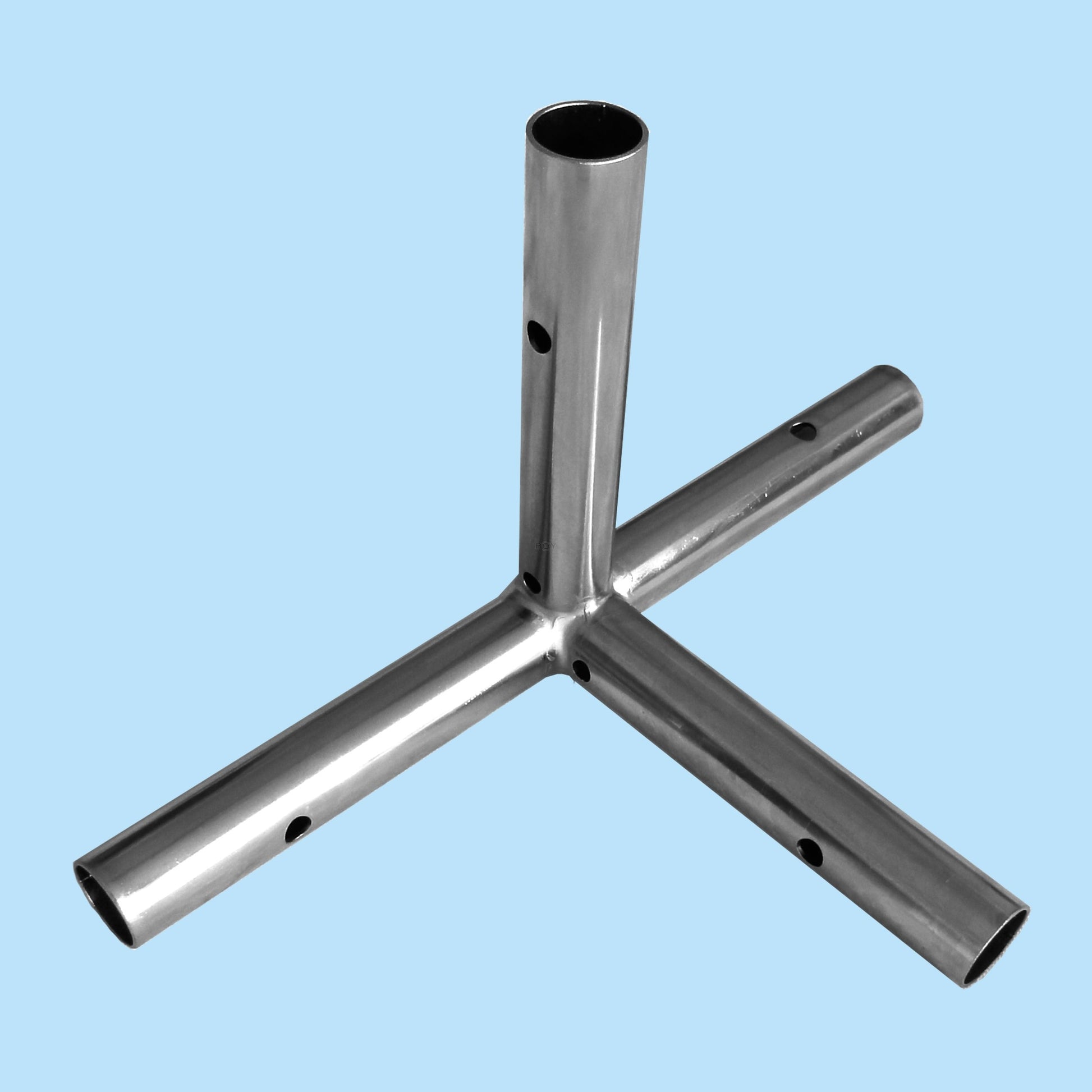

Side Angle Connection for our extendable telescopic poles and connecting rods

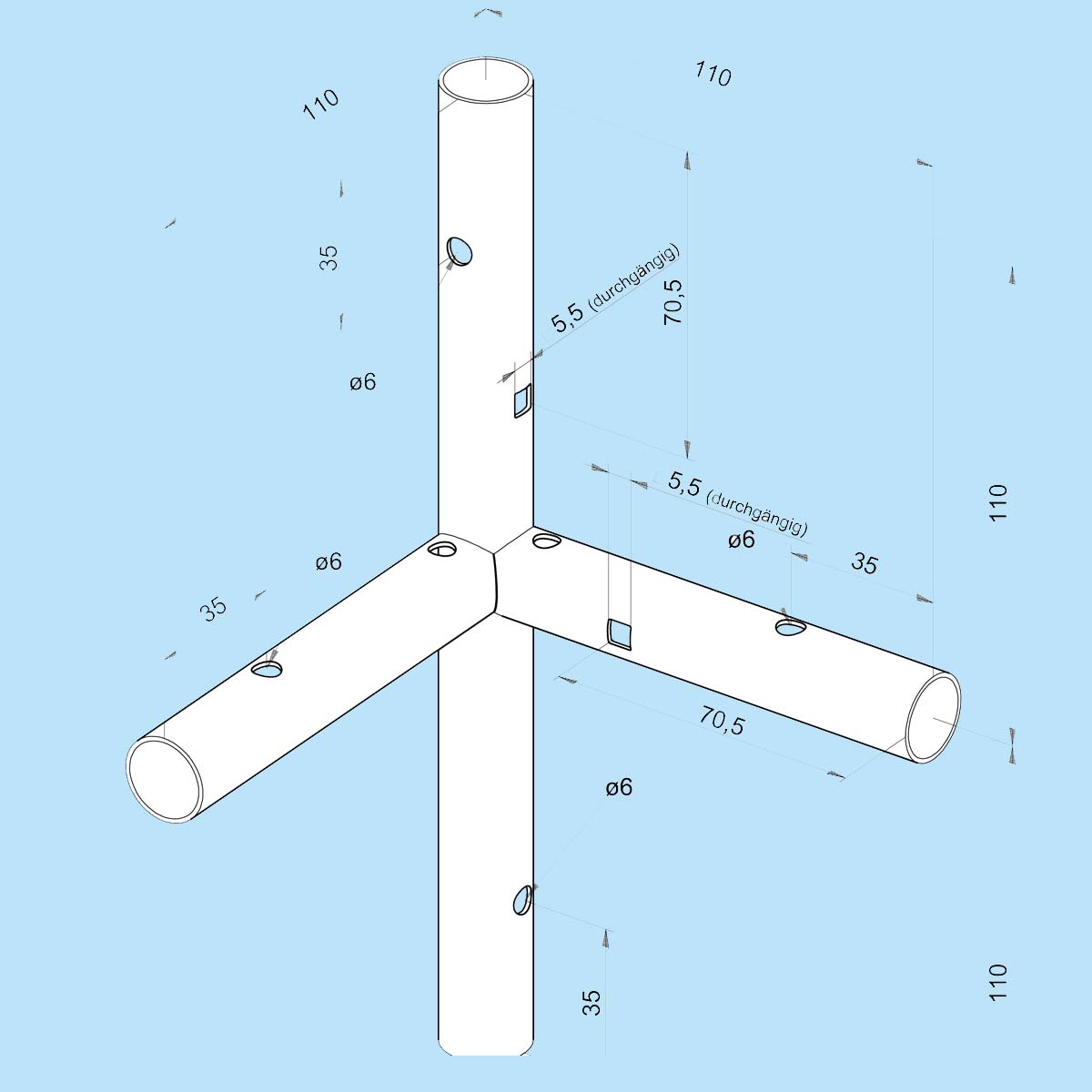

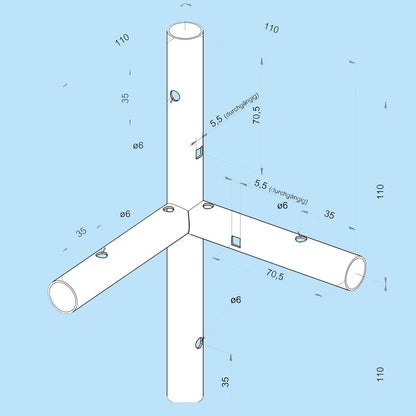

Depending on the size of the frame area, cross connectors should be used to ensure stability. This side angle connector can be used horizontally and vertically (see drawing). It fits our extendable telescopic poles and our connecting poles.

If this side angle connector is attached to our telescopic pole, you will also need a fastening screw. If the side angle connector is attached to the connecting poles, you do not need an extra screw. The connecting poles have a tripod spring that locks into the connecting element.

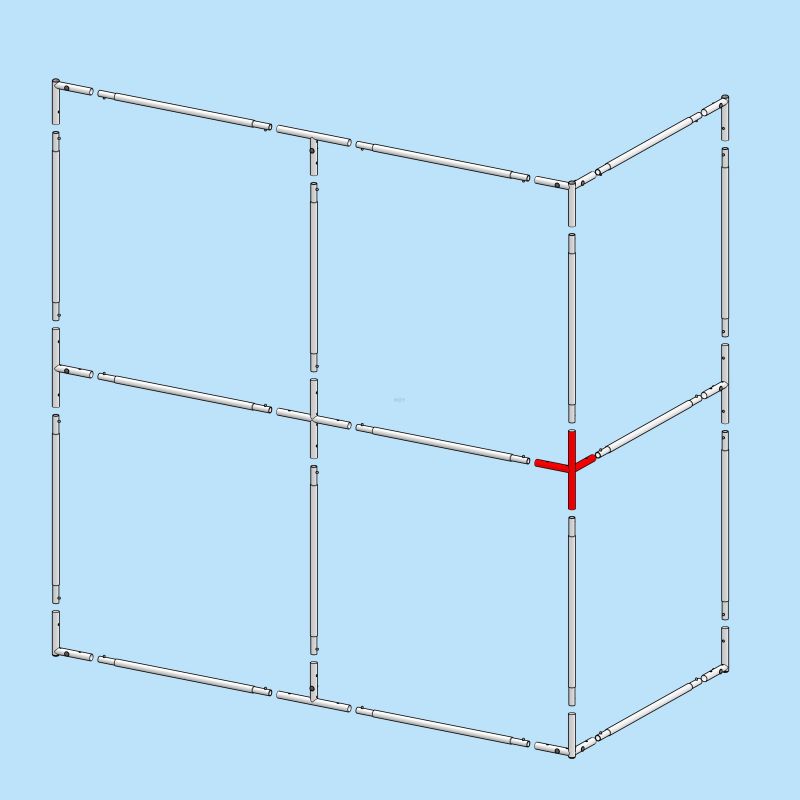

Frame system with extendable telescopic poles for a 3.5 m long balcony with a corner

• 1) End connector
• 2) T-connector
• 3) Corner angle connector
• 4) Connecting pole 200 cm
• 5) Connecting pole 100 cm
• 6) Connecting pole 120–200 cm
• 7) Extendable telescopic pole
