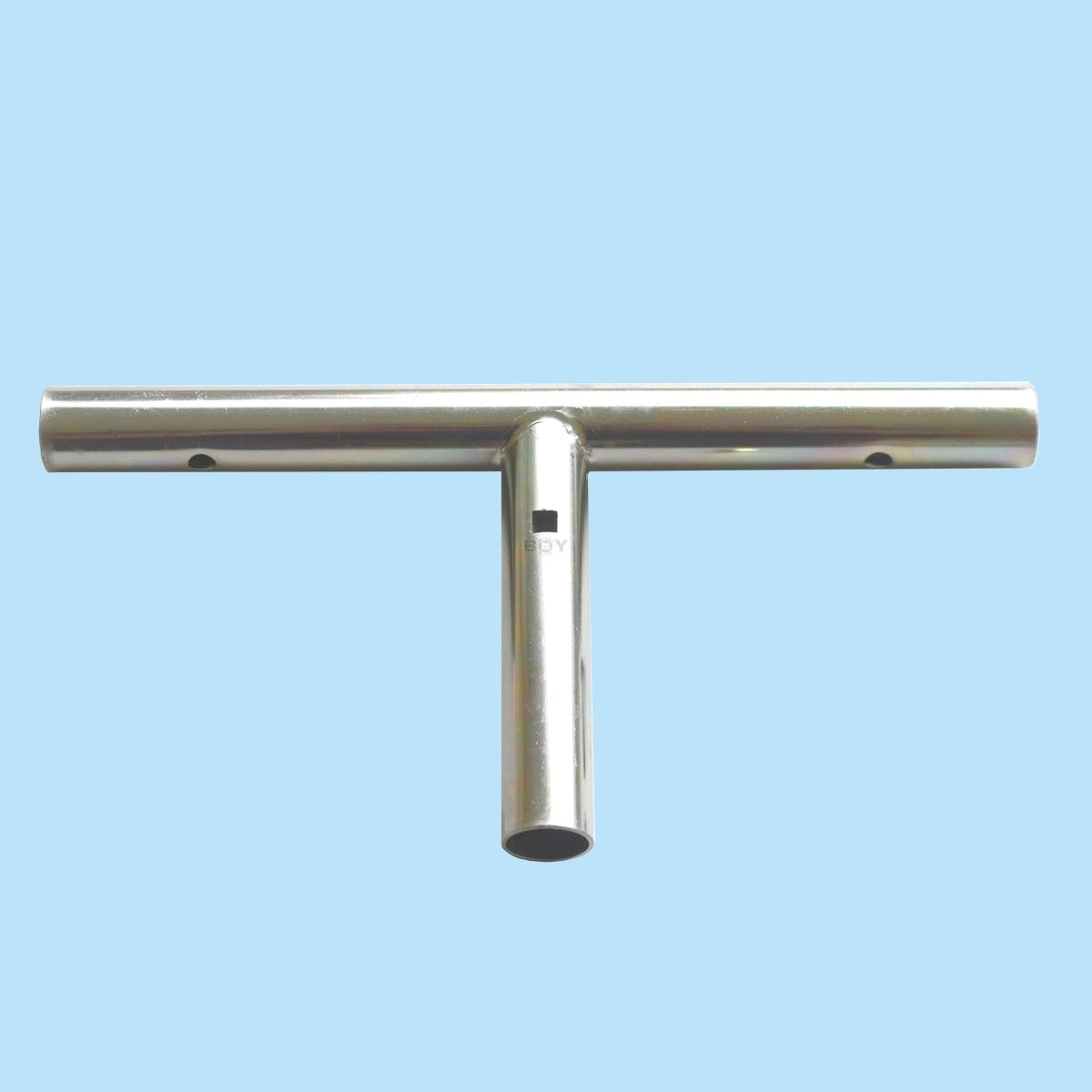

T-connector for our extendable telescopic poles and connecting rods

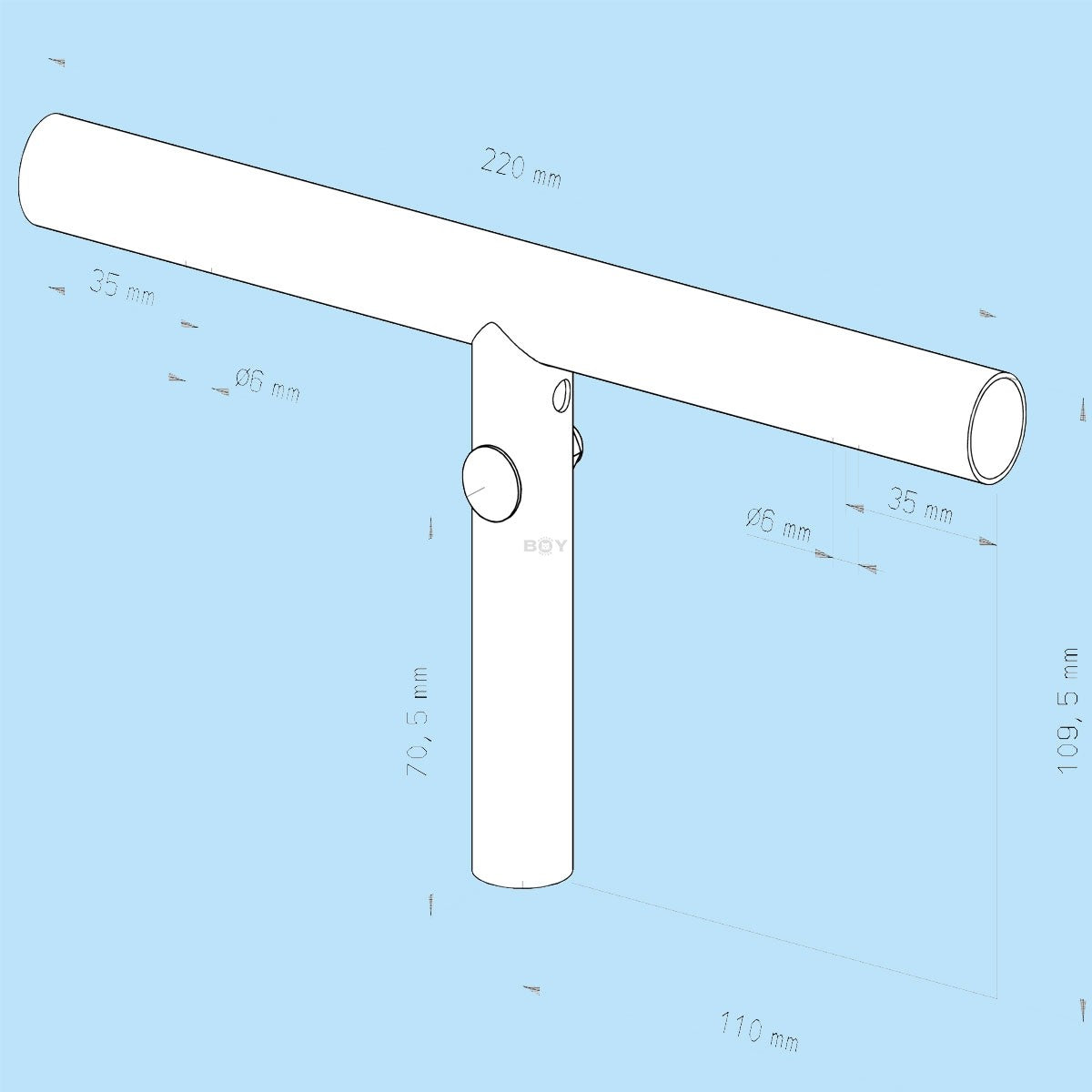

T-connector - for our telescopic poles and connecting rods. The T-connector is needed to connect 2 connecting rods on the horizontal long side. This frame construction significantly increases the stability of your balcony netting. Easy assembly.

These T-connectors are placed on top of the extendable telescopic poles (on the 16 mm Ø insert tube) and permanently secured with the appropriate screw set. The distances between the telescopic poles should not be more than 2 meters. Please note that all offered connecting elements cannot be attached to the lower end of the extendable telescopic pole.

If you also want to install a cross connection on the lower long side, then you cannot use the extendable telescopic poles. In this case, you must use the connecting rods. Then you can attach the connecting elements at the top and bottom (in this case, the connecting elements are placed on the connecting rod and secured by the tripod spring snapping into place).

ATTENTION: You do NOT need a screw if the T-connector is used together with the connecting rods. Screws are only needed if the T-connector is mounted on our extendable telescopic pole.

To secure the front of a 4 m long balcony, for example, you need the following parts:

• 2 x End connectors + screws
• 1 x T-connector + screws
• 2 x Connecting rods à 2.0 m
• 3 x Extendable telescopic poles up to 210 cm
• 3 x Telescopic pole holders (wall bracket, railing bracket or masonry bracket)
• 1 x Boy cat net
• 1 x Net ties (pack of 100)

If the netting is to be extended further to the house wall, you will need an additional corner connector. Please refer to our assembly instructions and technical drawings.

Frame system for a 2 m long balcony or terrace

Frame system for a 2.4 m to 3.8 m long balcony or terrace

Frame system for a 4 m long balcony or terrace

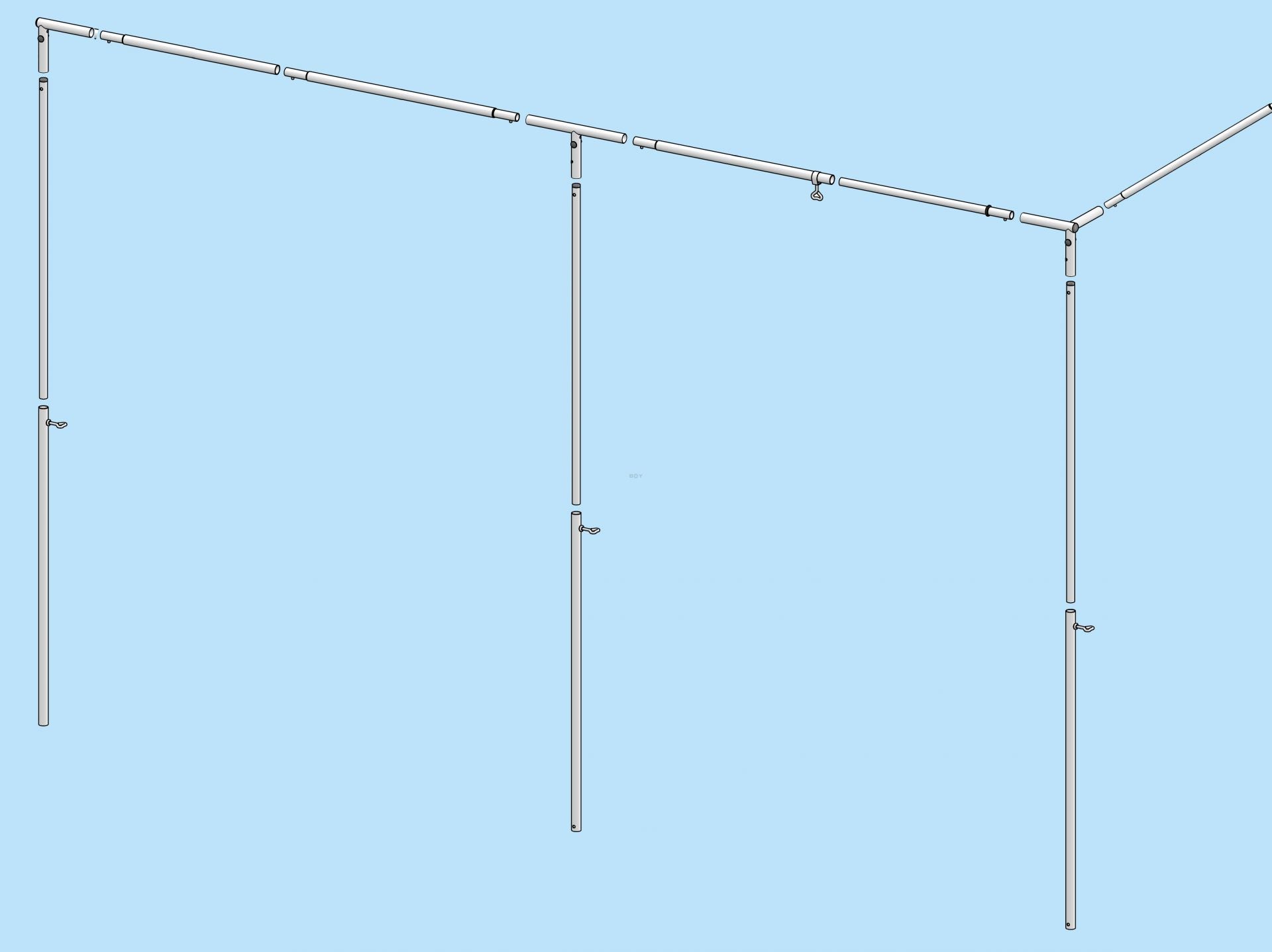

Frame system with extendable telescopic poles for a 3.5 m long balcony with a corner

• 1) End connector
• 2) T-connector
• 3) Corner angle connector
• 4) Connecting rod 200 cm
• 5) Connecting rod 100 cm
• 6) Connecting rod 120 - 190 cm
• 7) Extendable telescopic pole

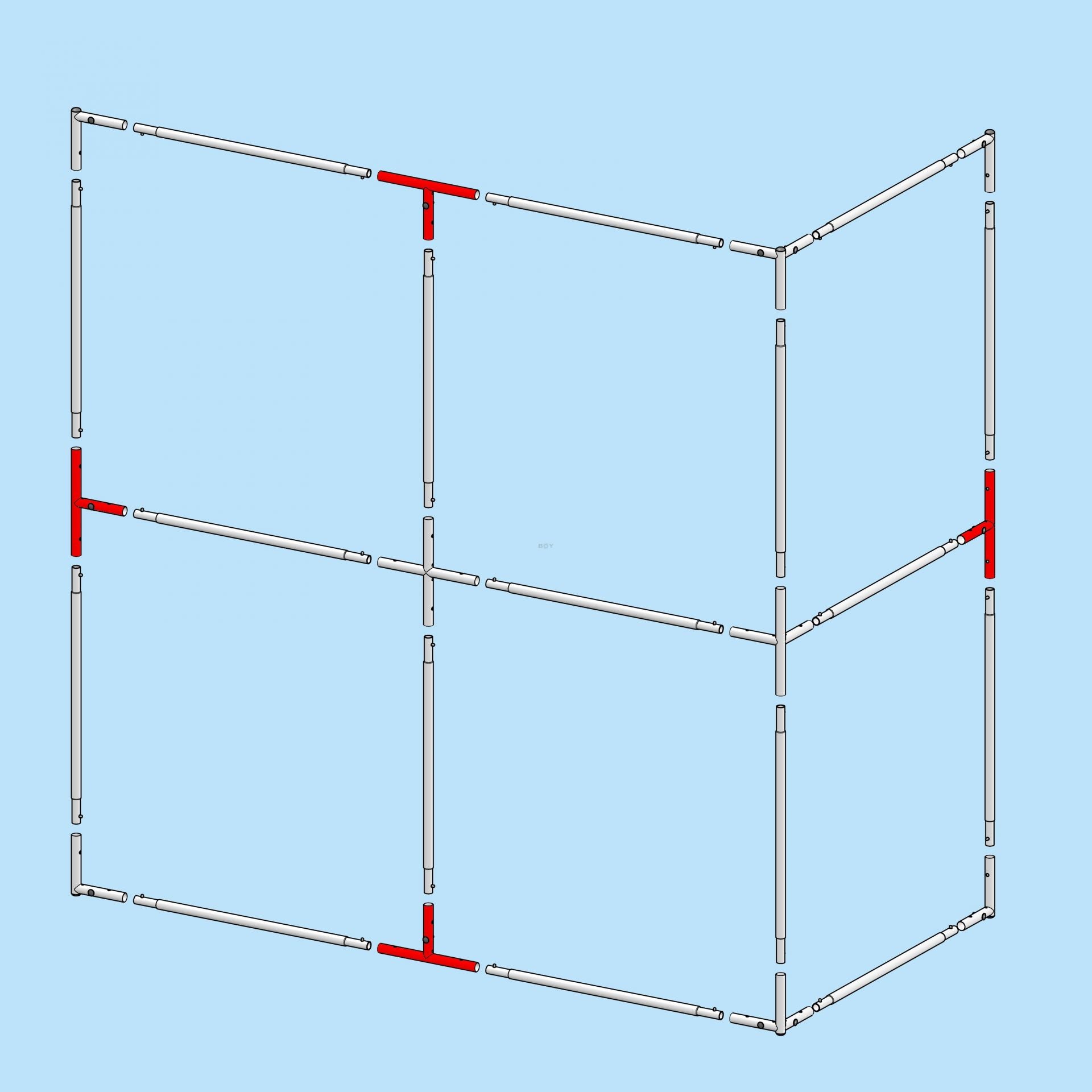

Frame system with connecting rods - Wall with corner and anti-climb protection
