Tie Rods - T-Connection
Tie Rods - T-Connection
Attaches to the top of the tension rod and connects it to the connecting rods – for stable T-connections in the frame system.
Couldn't load pickup availability
Artikelnummer: 385127
Share
Beschreibung
Beschreibung

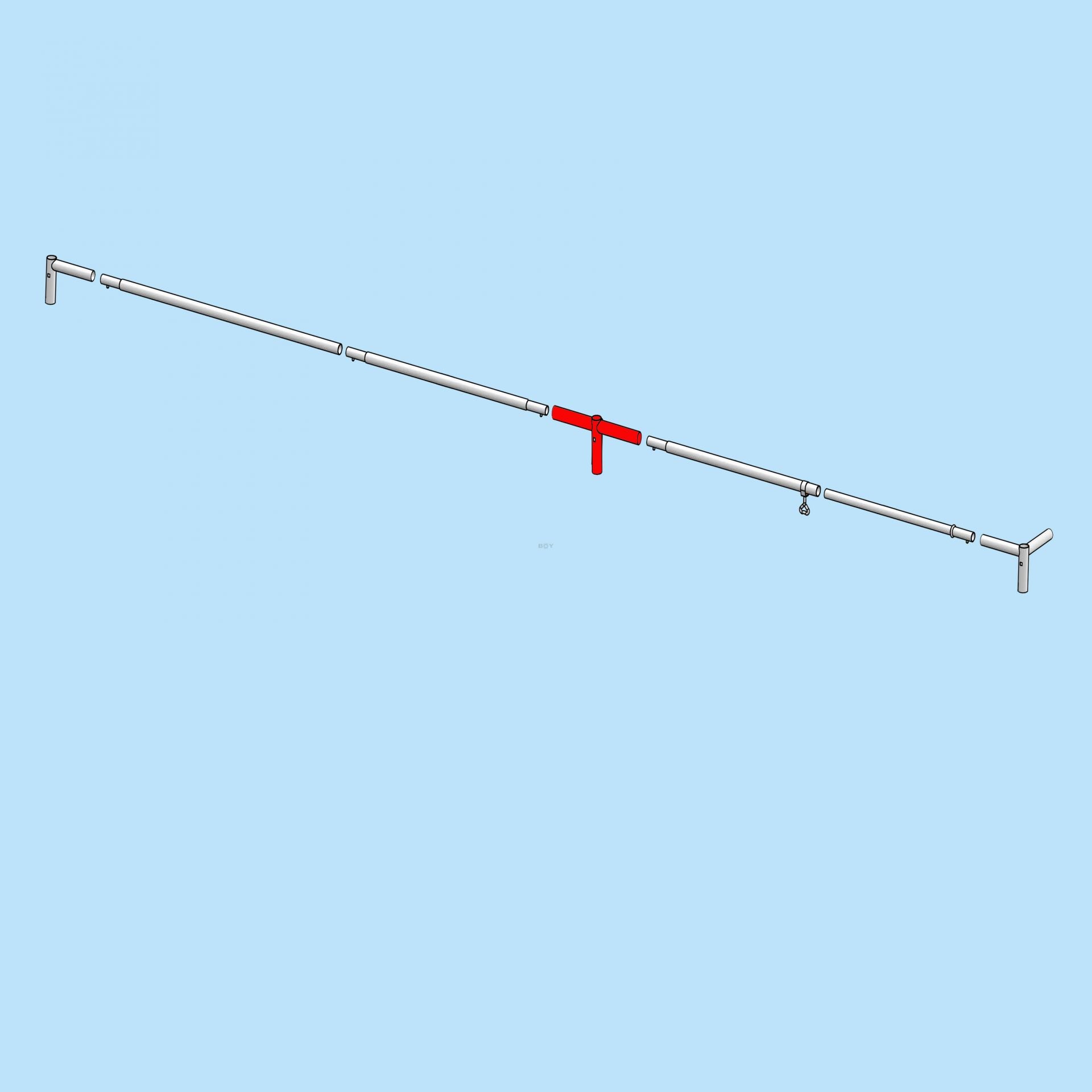

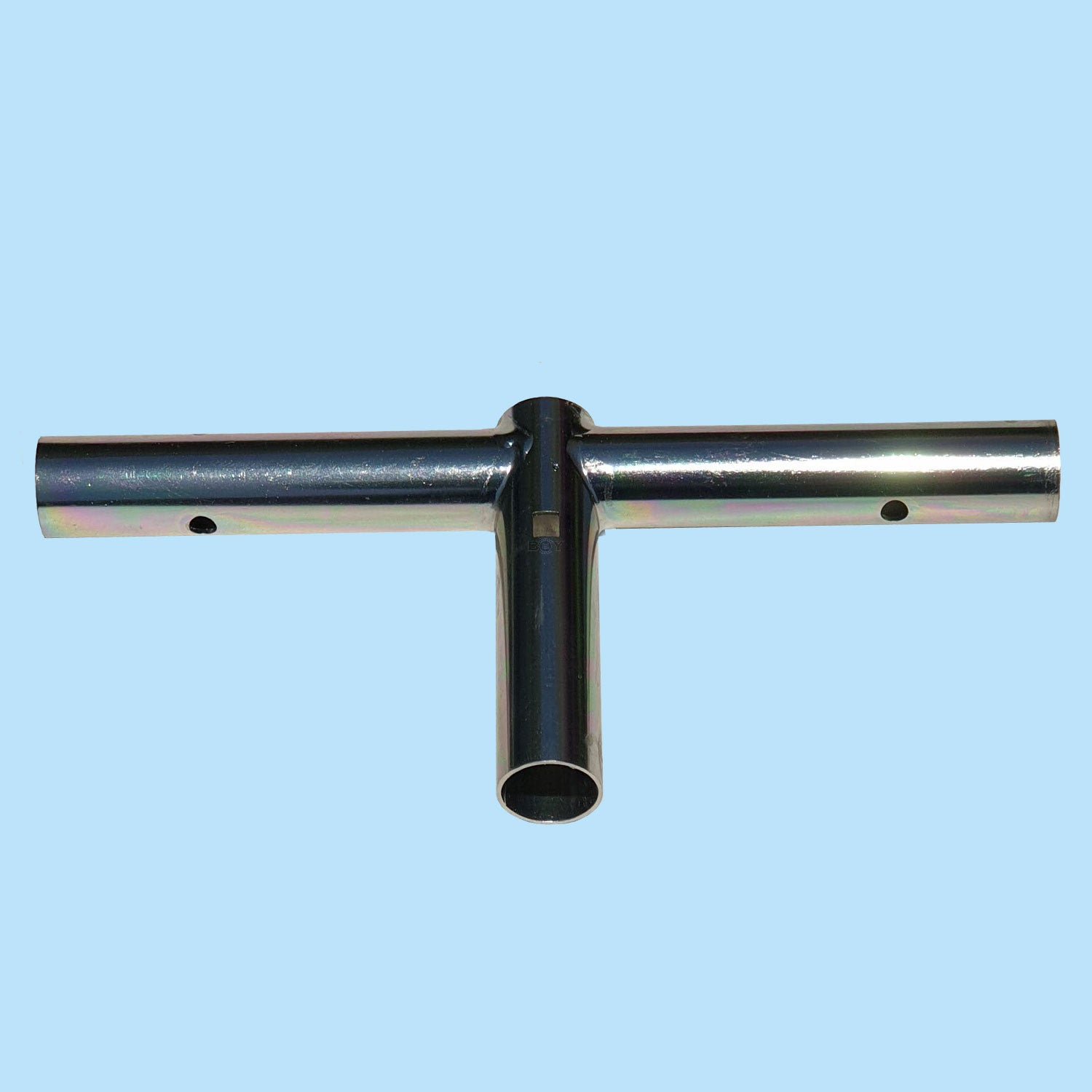

This T-connector element is specially designed for our telescopic tension poles up to 300cm. This connector element is also attached to the top of the telescopic pole with a screw. The tension poles are connected to each other with the connecting rods.

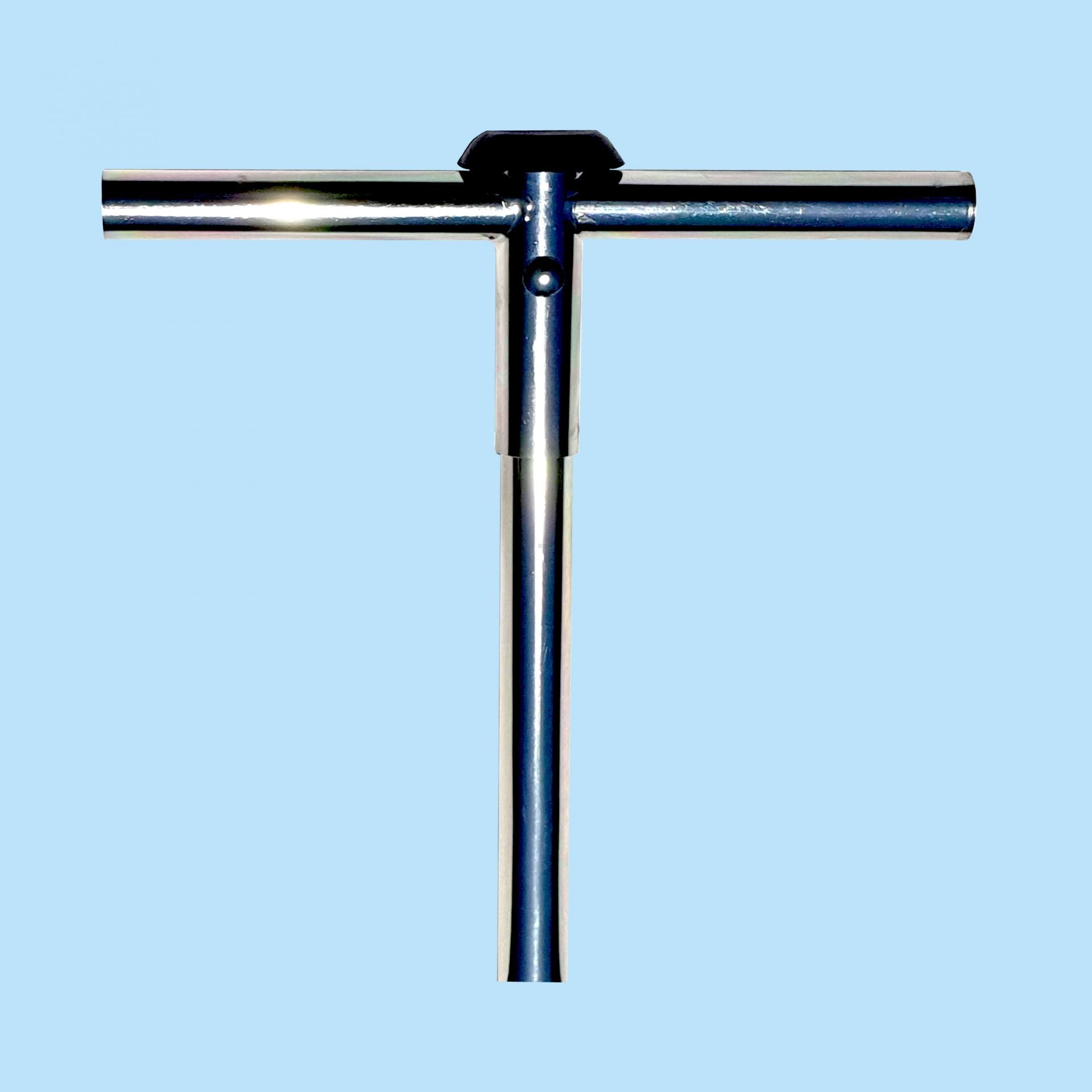

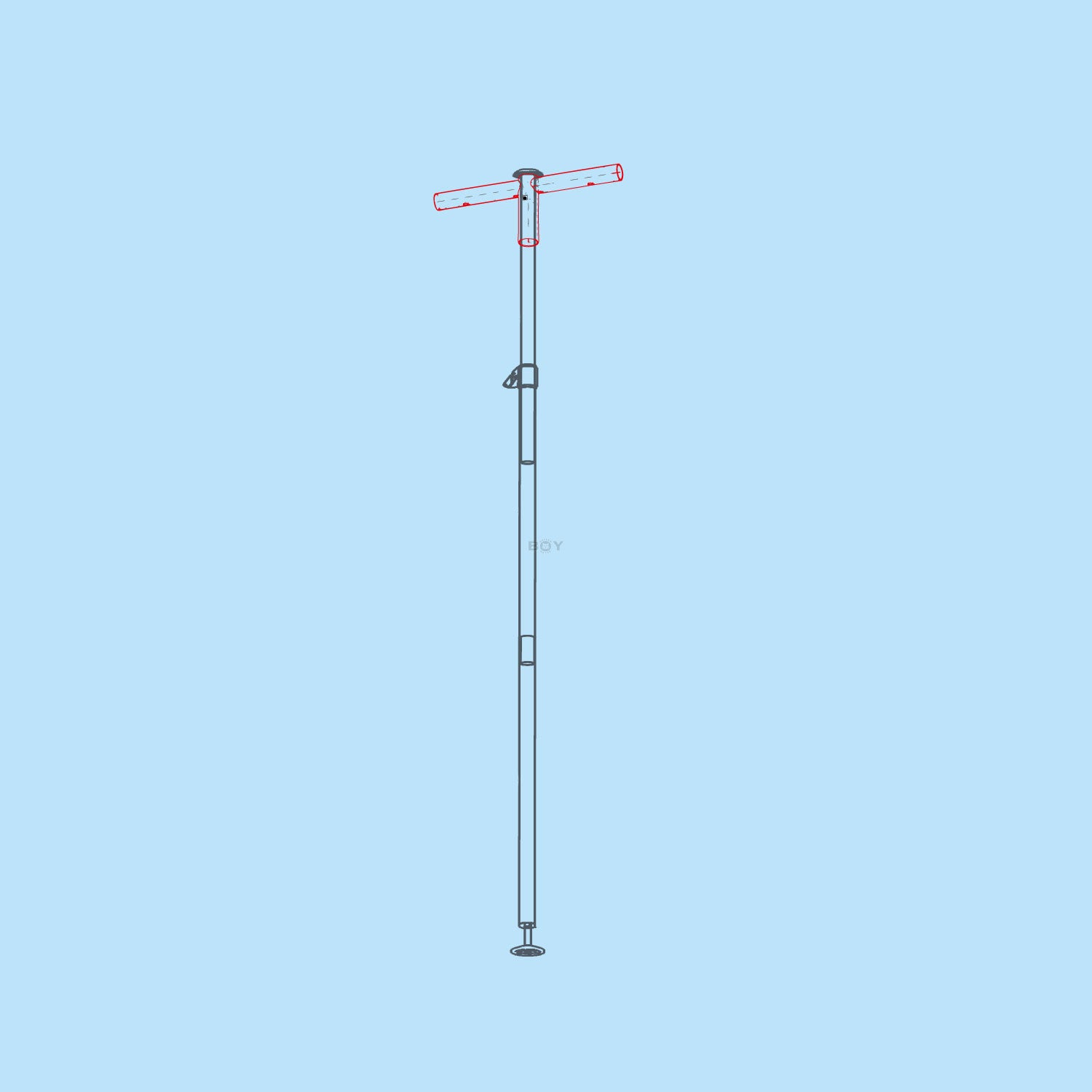

The upper insert tube of the tension rod is pushed through the T-connector. The insert tube has a hole at the top for the braided cord. A screw (must be ordered separately) is inserted through the T-connector and through the hole in the insert tube and screwed tight. Done. Slide the insert tube back into the telescopic pole and adjust it with the turnbuckle. To connect the telescopic tension poles, only our connecting rods can be used.
Technische Infos
Technische Infos
